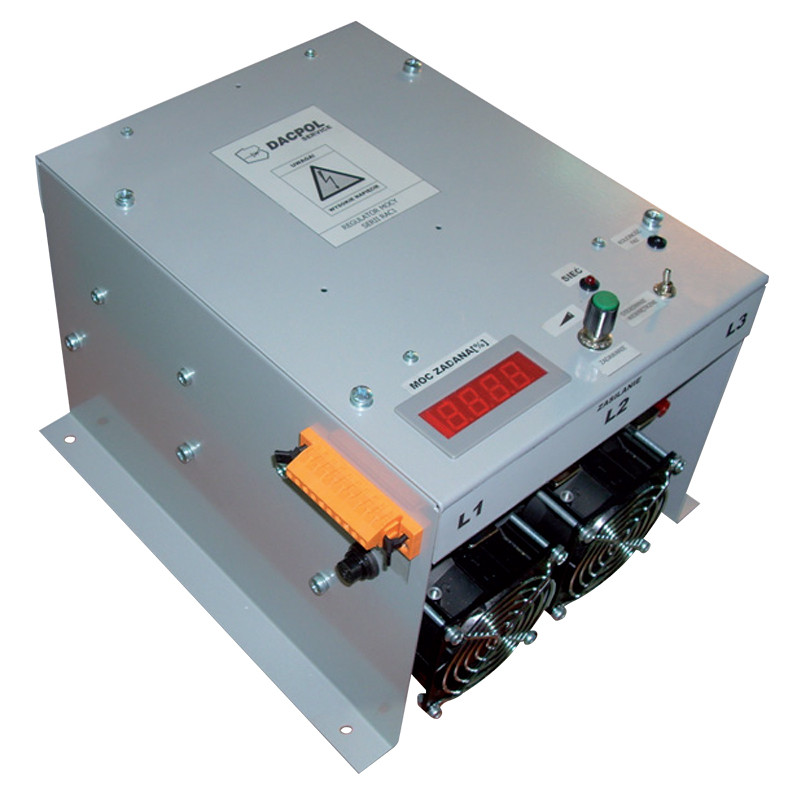

Single-phase diode rectifier from the PD1F series

Single-phase diode rectifier from the PD1F series 40-250 A


Rectifier sets are characterized by:

  • very high durability;
  • resistance to surges in the power supply network;
  • high utility value.

Sustainability is achieved through:

  • selection of diodes for anticipated load size and operating conditions;
  • the use of a heat sink to ensure optimum thermal conditions for the diodes;
  • using fast fuses properly selected for the size of diodes and their loads;
  • use of RC suppressors for reducing of commutation surges;
  • use of RC suppressors to protect diodes from power line surges in particularly difficult operating conditions.

Utility values of rectifier sets:

  • convenient mounting and wiring in control cabinets;
  • increased level of passive safety of operation ensured by shielding of conductive parts;
  • easy fuse replacement;
  • easy repair in case of damage.


Technical data

Max. current load
 30 - 250 A
Peak current t = 10 ms
 1600 3500 6000
Power supply
 max. 600 V, 50 Hz
Protection
Surge protection
 RC suppressor
Short-circuit protection
 fast fuses
Air cooling
 forced
Insulation test voltage
 2,5 kV
Shielding
 plexi
Ingress Protection
 IP00
Environmental conditions
Operating temperature range
 0 to 50 °C
Storage temperature range
 0 to 55 °C
Relative humidity
 up to 85% (no condensation)
Altitude
 up to 1000 m without power reduction
Dimensions and weight
Package dimensions L x W x H [mm]
 364 x 304 x 246
Weight
 10 kg
Wiring and mounting
Wiring
 Screws M6/M8 (Cu rails)
Rectangle of fixing holes [mm]
 250 x 250….220 x 330
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us

ASK FOR THE PRODUCT close
Message sent successfully.
ASK FOR THE PRODUCT close
