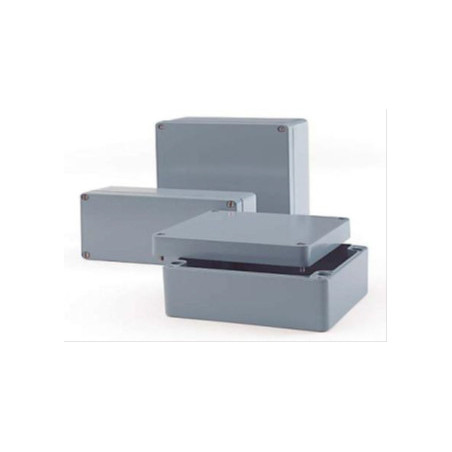

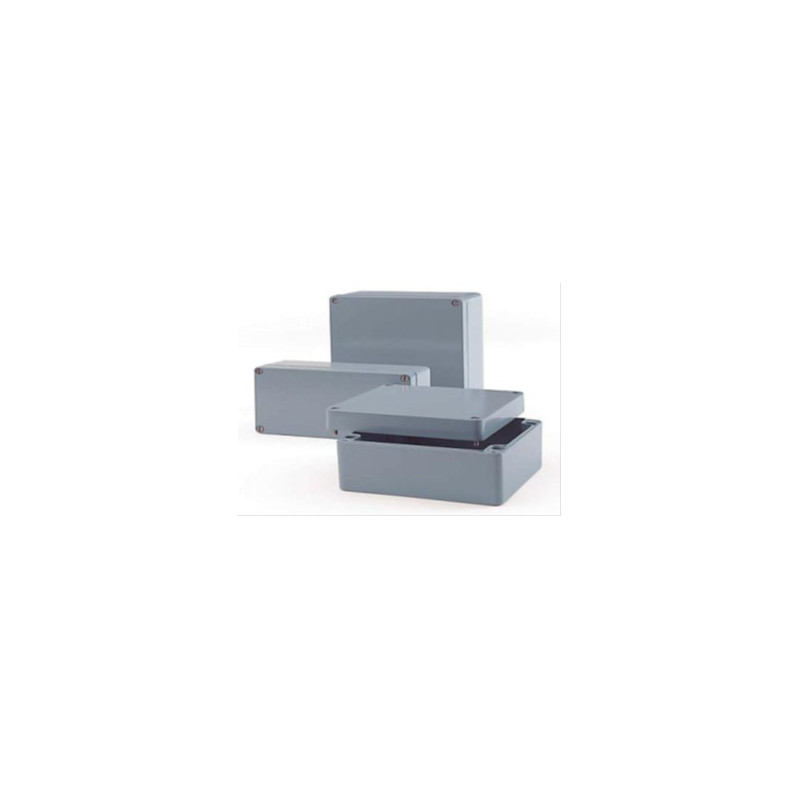

RJ37 Aluminum housing 200x140x90

A professional aluminum enclosure with dimensions 200×140×90 mm is a reliable solution for protecting electronic and mechanical devices operating in demanding industrial environments. Made of high-quality AlSi12 aluminum alloy (according to DIN EN 1706), it offers excellent resistance to corrosion, impacts, and varying weather conditions.

Key features and technical specifications

• Material: AlSi12 aluminum alloy (DIN EN 1706)
• External dimensions: 200 mm (length) × 140 mm (width) × 90 mm (height)
• Protection rating: IP66 – complete dust-tightness and resistance to powerful water jets
• Mechanical resistance: IK09 – impact resistance up to 10 J
• Operating temperature range: from -40°C to +100°C
• Sealing: durable neoprene gasket protecting against moisture and dust
• Cover screws: stainless steel AISI 304 (1.4301) – corrosion-resistant
• Compliance with MIL-STD-810G – confirmed resistance to vibrations and shocks

Applications

The enclosure is used in industries that require the highest standards of component protection:

• Industrial automation
• Energy and renewable energy sources
• Railway and transportation
• Military installations
• Consumer and industrial electronics

Thanks to its IP66 ingress protection and IK09 mechanical resistance, the product is suitable for use in production halls as well as outdoor environments exposed to dust, moisture, vibrations, or mechanical damage.

Why choose this enclosure?

Choosing this enclosure ensures durability and safety of your installation even in harsh environmental conditions. Its universal design makes it ideal for various applications – from industry to the military sector. It stands out with high technical specifications, such as sealing, impact resistance, and a wide operating temperature range. This is a solution designed for long-term and reliable operation in demanding applications.
