Resolver R58
Resolver R58

Photos are for informational purposes only. View product specification

please use latin characters

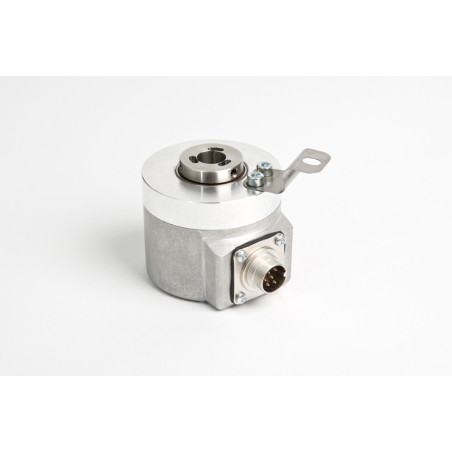

Resolver R58

  • R58
  • Accuracy ± 6‘
  • Input voltage 7 V
  • Original page R1 - R2
  • Pole pairs 1
  • Transformation coefficient 0.5 ± 10%
  • Input current 58 mA
  • Input frequency 5 kHz
  • Phase shift (±3°) 8° ± 3°
  • Zero voltage max. 30 mV
  • Accuracy Ripple max. 1‘
  • Hi-Pot Housing/Winding min. 500 VAC
  • Winding/Hi-Pot Winding min. 250 VAC
  • Rotor/stator Completely impregnated
  • Working temperature -55 °C ... +155 °C
Shaft diameter: max. 12 mm Wales Drilled Ø: Max. 17 mm Outdoor diameter: 58 mm Working temperature: -20 ° C ... +80 ° C Perm. Speed: 6,000 min-1 Accuracy: ± 4 '/± 6'/± 10 ' Passionate accuracy: 1 'max. Rotor and stator completely impregnated Pairs of poles 1/2/3/4

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Accuracy ± 6‘
  • Input voltage 7 V
  • Original page R1 - R2
  • Pole pairs 1
  • Transformation coefficient 0.5 ± 10%
  • Input current 58 mA
  • Input frequency 5 kHz
  • Phase shift (±3°) 8° ± 3°
  • Zero voltage max. 30 mV
  • Accuracy Ripple max. 1‘
  • Hi-Pot Housing/Winding min. 500 VAC
  • Winding/Hi-Pot Winding min. 250 VAC
  • Rotor/stator Completely impregnated
  • Working temperature -55 °C ... +155 °C
Shaft diameter: max. 12 mm Wales Drilled Ø: Max. 17 mm Outdoor diameter: 58 mm Working temperature: -20 ° C ... +80 ° C Perm. Speed: 6,000 min-1 Accuracy: ± 4 '/± 6'/± 10 ' Passionate accuracy: 1 'max. Rotor and stator completely impregnated Pairs of poles 1/2/3/4
