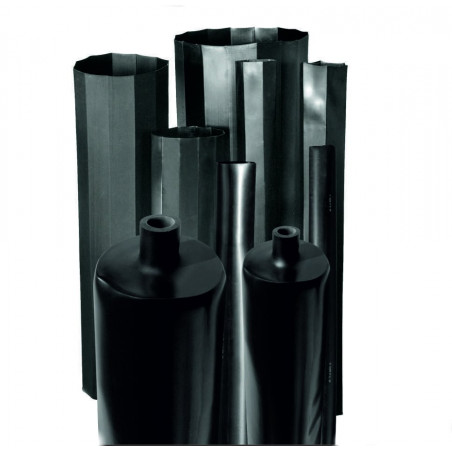

Thick-walled tubing - type RDK, RDM RD
Thick-walled tubing - type RDK, RDM RD

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: RADPOL

Thick-walled tubing - type RDK, RDM RD

Application:
Thick wall heat shrink tubes - type RDK, RDM, RDThey are designed for insulation of metal elements, lampposts, masts, pipelines and elements of bridges.
Due to high shrink ratio, they are a great insulation for cable culverts ends e.g. under the streets.
RDK tubes are wholly adhesive-layered and RDM are supplied with mastic stripes at the ends.
Both adhesive layer and mastic stripes are tight insulation and protect against any moist penetration under the heat shrink layer.
The dimensions of RDK and RDM tubes are specially matched to the sizes of lamposts. They protect them effectively against salt, animals’ urine and gases in the air

Technical data
  • Operating temperature: RDK -15 up to +125°C, RDM -40 up to +125°C, RD -55 up to +125°C
  • Shrink ratio: 2:1, 4:1
  • The minimum shrink temperature: +120°C
  • Colours: black
  • Tubes halogen-free
  • UV resistant
  • In accordance with REACH, RoHS



Tube with adhesive Tube with mastik Tube without adhesive and mastic Dimensions [mm] Packing
[pcs. 1 m]
Typ Typ Typ D d s

RDK 55 / 15

-

RD 55 / 15

  55 15  4,5 40

RDK 76 / 18

RDM 76 / 18

RD 76 / 18

 76 18 4,0 15

RDK 95 / 25

RDM 95 / 25

RD 95 / 25

 95 25 4,5 15

RDK 105 / 32

RDM 105 / 32

RD 105 / 32

 105 32 4,0 12

RDK 140 / 34

RDM 140 / 34

RD 140 / 34

 140 34 4,5 8

RDK 155 / 90

RDM 155 / 90

RD 155 / 90

 155 90 2,9 1

RDK 175 / 90

RDM 175 / 90

RD 175 / 90

 175 90 2,9 1

RDK 195 / 90

RDM 195 / 90

RD 195 / 90

 195 90 2,5 1

RDK 225 / 90

RDM 225 / 90

RD 225 / 90

 225 90 2,5 1

RDK 245 / 125

RDM 245 / 125

RD 245 / 125

 245 125 2,8 1

RDK 255 / 125

RDM 255 / 125

RD 255 / 125

 255 125 2,8 1

RDK 275 / 125

RDM 275 / 125

RD 275 / 125

 275 125 2,8 1

RDK 300 / 125

RDM 300 / 125

RD 300 / 125

 300 125 2,8 1

RDK 350 / 125

RDM 350 / 125

RD 350 / 125

 350 125 2,8 1

RDK 390 / 200

RDM 390 / 200

RD 390 / 200

 390 200 3 1

RDK 400 / 200

RDM 400 / 200

RD 400 / 200

 400 200 3 1

RDK 440 / 200

RDM 440 / 200

RD 440 / 200

 440 200 3 1

RDK 460 / 200

RDM 460 / 200

RD 460 / 200

 460 200 3 1

RDK 500 / 200

RDM 500 / 200

RD 500 / 200

 500 200 3 1

RDK 530 / 200

RDM 530 / 200

RD 530 / 200

 530 200 3 1

RDK 560 / 250

RDM 560 / 250

RD 560 / 250

 560 250 3,2 1

RDK 620 / 250

RDM 620 / 250

RD 620 / 250

 620 250 3,2 1

RDK 710 / 250

RDM 710 / 250

RD 710 / 250

 710 250 3,2 1

RURY TERMOKURCZLIWE DUŻYCH ŚREDNIC wymiary

D - minimum internal diamter before recovery
d - maximuminternal diamter before recovery
s - wall thicknes after entire recovery



Properties       Test method  Tubes RDK/RDM/RD
Operating temperature   -15 up to +125°C  /  -40 up to +125  /  -55 up to +125
Length change after shrinking EN 60684-2 +5 ÷ -15%
Tensile strength, min EN 60684-2 12 MPa
Elongation at rupture, min. EN 60684-2 300%
Heat ageing (168 h, temperature) EN 60684-2 158°C
Tensile strength after heat ageing, min. EN 60684-2 10 MPa
Elongation at rupture after heat ageing, min. EN 60684-2 200%
Heat shock (4 hours, temperature) EN 60684-2 200°C no dripping, breaking and wall spread
Contact with Cu after heat ageing
(168 hours, temperature): elongation at rupture, min.		 EN 60684-2 158°C 100%
Cu corrosion EN 60684-2 doesn't corrodee
Cold bend; 4 hours EN 60684-2 doesn't break in temp. -55°C
Flammability EN 60684-2 firearms
Water absorptivity, max ISO 62 0,1%
Dielectric resistance, min. EN 60684-2;  IEC 60243-1 16kV/mm
Volume resistivity, min. EN 60684-2;  IEC 60093 1012Ωm
