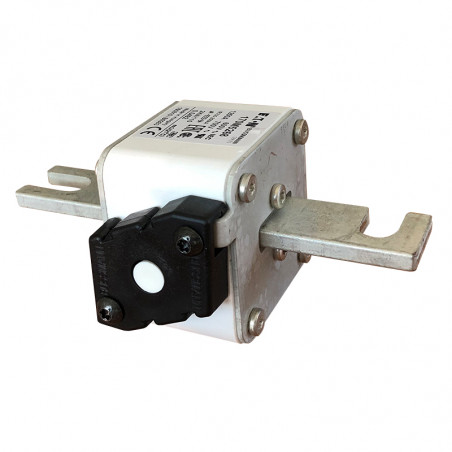

Screw in fuses DIN 43653

FAST FUSES EUROPEAN STANDARD
SCREW IN FUSES DIN 43653

Table. 690 VAC 10-400 A – SIZE 000, 00 aR/gR breaking capacity200 kARMS

SizeCharacteristic typeIN
[A]
I2t
before arc
[A2s]
I2t
@660 V
[A2s]
Power loss
[W]
Type without indicatorType with visual indicatorType with micro-relay type TQuantity in packagePackage weight
[kg]
000 gR 10 3,8 25,5 3 170M1308 170M1358 170M1408 10 1,34
gR 16 7,2 48 5,5 170M1309 170M1359 170M1409 10 1,34
gR 20 11,5 78 7 170M1310 170M1360 170M1410 10 1,34
gR 25 19 130 9 170M1311 170M1361 170M1411 10 1,34
gR 32 40 270 10 170M1312 170M1362 170M1412 10 1,34
gR 40 69 460 12 170M1313 170M1363 170M1413 10 1,34
gR 50 115 770 15 170M1314 170M1364 170M1414 10 1,34
gR 63 215 1450 16 170M1315 170M1365 170M1415 10 1,34
aR 80 380 2550 19 170M1316 170M1366 170M1416 10 1,34
aR 100 695 4650 24 170M1317 170M1367 170M1417 10 1,34
aR 125 1200 8500 28 170M1318 170M1368 170M1418 10 1,34
aR 160 2300 16000 32 170M1319 170M1369 170M1419 10 1,34
aR 200 4200 28000 37 170M1320 170M1370 170M1420 10 1,34
aR 250 7750 51500 42 170M1321 170M1371 170M1421 10 1,34
aR 315 12000 80500 52 170M1322 170M1372 170M1422 10 1,34
00 gR 25 19 130 6   170M2608 170M2658 5 1,05
gR 32 28,5 195 7   170M2609 170M2659 5 1,05
gR 40 50 360 9   170M2610 170M2660 5 1,05
gR 50 95 640 10   170M2611 170M2661 5 1,05
gR 63 170 1200 12   170M2612 170M2662 5 1,05
gR 80 310 2100 15   170M2613 170M2663 5 1,05
aR 100 620 4150 20   170M2614 170M2664 5 1,05
aR 125 1000 6950 25   170M2615 170M2665 5 1,05
aR 160 1900 13000 30   170M2616 170M2666 5 1,05
aR 200 3400 23000 35   170M2617 170M2667 5 1,05
aR 250 6250 42000 45   170M2618 170M2668 5 1,05
aR 315 10000 68500 55   170M2619 170M2669 5 1,05
aR 350 13500 91500 60   170M2620 170M2670 5 1,05
aR 400 18000 125000 70   170M2621 170M2671 5 1,05





Size
[mm]
DEFGHk
000 40 21 20 51 8 2
00 51 30 28 67 10 2





Dimensions [mm]


Table. 690 V/700 VAC for micro relays T–  T and K series 40-2000 A - Size 1*, 1, 2, 3 aR breaking capacity 900kARMS>

SizeIN
[A]
I2t
before arc
[A2s]
I2t
@
660 V
[A2s]
Power loss
[W]
Type
-/80
visual indicator
Type
-TN/80
with micro-relay type T
Type
-/110
visual indicator
Type
-TN/110
with micro-relay type T
Type
-KN/80
with micro-relay type k
Type
-KN/110
with micro-relay type k
Quantity in packagePackage weight
[kg]
1* 40 40 270 9 170M3008 170M3058 170M3158 170M3208 170M3108 170M3258 5 1/5
50 77 515 11 170M3009 170M3059 170M3159 170M3209 170M3109 170M3259 5 1/5
63 115 770 14 170M3010 170M3060 170M3160 170M3210 170M3110 170M3260 5 1/5
80 185 1250 18 170M3011 170M3061 170M3161 170M3211 170M3111 170M3261 5 1/5
100 360 2450 21 170M3012 170M3062 170M3162 170M3212 170M3112 170M3262 5 1/5
125 550 3700 26 170M3013 170M3063 170M3163 170M3213 170M3113 170M3263 5 1/5
160 1100 7500 30 170M3014 170M3064 170M3164 170M3214 170M3114 170M3264 5 1/5
200 2200 15000 35 170M3015 170M3065 170M3165 170M3215 170M3115 170M3265 5 1/5
250 4200 28500 40 170M3016 170M3066 170M3166 170M3216 170M3116 170M3266 5 1/5
315 7000 46500 50 170M3017 170M3067 170M3167 170M3217 170M3117 170M3267 5 1/5
350 10000 68500 55 170M3018 170M3068 170M3168 170M3218 170M3118 170M3268 5 1/5
400 15000 105000 60 170M3019 170M3069 170M3169 170M3219 170M3119 170M3269 5 1/5
450 21000 140000 65 170M3020 170M3070 170M3170 170M3220 170M3120 170M3270 5 1/5
500 27000 180000 70 170M3021 170M3071 170M3171 170M3221 170M3121 170M3271 5 1/5
550 34000 230000 75 170M3022 170M3072 170M3172 170M3222 170M3122 170M3272 5 1/5
630 48500 325000 80 170M3023 170M3073 170M3173 170M3223 170M3123 170M3273 5 1/5
1 200 1650 11500 45 170M4008 170M4058 170M4158 170M4208 170M4108 170M4258 3 1,29
250 3100 21000 55 170M4009 170M4059 170M4159 170M4209 170M4109 170M4259 (-/80)
315 6200 42000 58 170M4010 170M4060 170M4160 170M4210 170M4110 170M4260
350 8500 59000 60 170M4011 170M4061 170M4161 170M4211 170M4111 170M4261 2 0,94
400 13500 91500 65 170M4012 170M4062 170M4162 170M4212 170M4112 170M4262 (-/110)
450 17000 120000 70 170M4013 170M4063 170M4163 170M4213 170M4113 170M4263
500 25000 170000 72 170M4014 170M4064 170M4164 170M4214 170M4114 170M4264
550 34000 230000 75 170M4015 170M4065 170M4165 170M4215 170M4115 170M4265
630 52000 350000 80 170M4016 170M4066 170M4166 170M4216 170M4116 170M4266
700 69500 465000 85 170M4017 170M4067 170M4167 170M4217 170M4117 170M4267
800 105000 725000 95 170M4018 170M4068 170M4168 170M4218 170M4118 170M4268
9002) 155000 8500002) 100 170M4019 170M4069 170M4169 170M4219 170M4119 170M4269
2 400 11000 74000 65 170M5008 170M5058 170M5158 170M5208 170M5108 170M5258 2 1/2
450 15500 105000 70 170M5009 170M5059 170M5159 170M5209 170M5109 170M5259 2 1/2
500 21500 145000 75 170M5010 170M5060 170M5160 170M5210 170M5110 170M5260 2 1/2
550 28000 190000 80 170M5011 170M5061 170M5161 170M5211 170M5111 170M5261 2 1/2
630 41000 275000 90 170M5012 170M5062 170M5162 170M5212 170M5112 170M5262 2 1/2
700 60500 405000 95 170M5013 170M5063 170M5163 170M5213 170M5113 170M5263 2 1/2
800 86000 575000 105 170M5014 170M5064 170M5164 170M5214 170M5114 170M5264 2 1/2
900 125000 840000 110 170M5015 170M5065 170M5165 170M5215 170M5115 170M5265 2 1/2
1000 180000 1250000 115 170M5016 170M5066 170M5166 170M5216 170M5116 170M5266 2 1/2
1100 245000 1600000 120 170M5017 170M5067 170M5167 170M5217 170M5117 170M5267 2 1/2
1250 365000 2400000 130 170M5018 170M5068 170M5168 170M5218 170M5118 170M5268 2 1/2
3 500 14000 95000 95 170M6008 170M6058 170M6158 170M6208 170M6108 170M6258 2 1,66
550 19500 135000 100 170M6009 170M6059 170M6159 170M6209 170M6109 170M6259 (-/80)
630 31000 210000 105 170M6010 170M6060 170M6160 170M6210 170M6110 170M6260
700 44500 300000 110 170M6011 170M6061 170M6161 170M6211 170M6111 170M6261 1 0,89
800 69500 465000 115 170M6012 170M6062 170M6162 170M6212 170M6112 170M6262 (-/110)
900 100000 670000 120 170M6013 170M6063 170M6163 170M6213 170M6113 170M6263
1000 140000 945000 125 170M6014 170M6064 170M6164 170M6214 170M6114 170M6264
1100 190000 1300000 130 170M6015 170M6065 170M6165 170M6215 170M6115 170M6265
1250 290000 1950000 140 170M6016 170M6066 170M6166 170M6216 170M6116 170M6266
1400 370000 2450000 155 170M6017 170M6067 170M6167 170M6217 170M6117 170M6267
1500 460000 3100000 160 170M6018 170M6068 170M6168 170M6218 170M6118 170M6268
1600 580000 3900000 160 170M6019 170M6069 170M6169 170M6219 170M6119 170M6269
18001) 880000 5250001) 165 170M6020 170M6070 170M6170 170M6220 170M6120 170M6270
20002) 1150000 6350002) 175 170M6021 170M6071 170M6171 170M6221 170M6121 170M6271

Caution
1)– 600V,2)– 550V

Table. 1250 V/1300 VAC for micro-relays T – T and K Series 50-1400 A - Size 1*, 1, 2 , 3 aR breaking capacity 100kARMS

SizeIN
[A]
I2t
before arc
[A2s]
I2t
@1000 V
[A2s]
I2t
@1250 V
[A2s]
Power loss
[W]
Type
-/110
visual indicator
Type
-TN/110
with micro-relay type T
Type
-KN/110
with micro-relay type k
Quantity in package Package weight
[kg]
1* 50 135 815 1100 15 170M3138 170M3188 170M3238 5 1/9
63 215 1300 1750 20 170M3139 170M3189 170M3239 5 1/9
80 420 2500 3350 25 170M3140 170M3190 170M3240 5 1/9
100 750 4450 5950 30 170M3141 170M3191 170M3241 5 1/9
125 1450 9000 11500 35 170M3142 170M3192 170M3242 5 1/9
160 2600 16000 21000 40 170M3143 170M3193 170M3243 5 1/9
200 5150 31000 41000 45 170M3144 170M3194 170M3244 5 1/9
250 9200 54500 73000 55 170M3145 170M3195 170M3245 5 1/9
315 18500 115000 150000 60 170M3146 170M3196 170M3246 5 1/9
350 27000 165000 220000 65 170M3147 170M3197 170M3247 5 1/9
400 53000 265000 335000 70 170M3148 170M3198 170M3248 5 1/9
1 160 1900 11500 15500 45 170M4138 170M4188 170M4238 2 1,18
200 3800 22500 30000 50 170M4139 170M4189 170M4239 2 1,18
250 7750 46000 61500 60 170M4140 170M4190 170M4240 2 1,18
315 15000 90000 120000 65 170M4141 170M4191 170M4241 2 1,18
350 20000 125000 165000 70 170M4142 170M4192 170M4242 2 1,18
400 29500 175000 235000 75 170M4143 170M4193 170M4243 2 1,18
450 42000 250000 335000 80 170M4144 170M4194 170M4244 2 1,18
500 69500 340000 435000 85 170M4145 170M4195 170M4245 2 1,18
550 95000 465000 590000 95 170M4146 170M4196 170M4246 2 1,18
6301) 130000 6600001)   100 170M4147 170M4197 170M4247 2 1,18
2 250 6500 38500 51500 65 170M5138 170M5188 170M5238 2 1,58
280 9350 55500 74500 70 170M5139 170M5189 170M5239 2 1,58
315 13000 77500 105000 75 170M5140 170M5190 170M5240 2 1,58
350 16500 97500 135000 80 170M5141 170M5191 170M5241 2 1,58
400 23000 140000 180000 85 170M5142 170M5192 170M5242 2 1,58
450 34000 205000 270000 90 170M5143 170M5193 170M5243 2 1,58
500 48000 285000 380000 95 170M5144 170M5194 170M5244 2 1,58
550 62000 370000 495000 100 170M5145 170M5195 170M5245 2 1,58
630 115000 575000 730000 110 170M5146 170M5196 170M5246 2 1,58
700 160000 795000 1050000 115 170M5147 170M5197 170M5247 2 1,58
800 245000 1200000 1550000 120 170M5148 170M5198 170M5248 2 1,58
9001) 360000 17500001)   125 170M5149 170M5199 170M5249 2 1,58
10001) 480000 23500001)   135 170M5150 170M5200 170M5250 2 1,58
3 315 9500 58000 77500 85 170M6138 170M6188 170M6238 1 1,23
350 13500 81500 110000 90 170M6139 170M6189 170M6239 1 1,23
400 19500 120000 160000 95 170M6140 170M6190 170M6240 1 1,23
450 31000 185000 245000 100 170M6141 170M6191 170M6241 1 1,23
500 39000 235000 310000 105 170M6142 170M6192 170M6242 1 1,23
550 55000 325000 435000 110 170M6143 170M6193 170M6243 1 1,23
630 83500 495000 665000 115 170M6144 170M6194 170M6244 1 1,23
700 115000 705000 940000 120 170M6145 170M6195 170M6245 1 1,23
8002) 205000 995000 1300000 125 170M6146 170M6196 170M6246 1 1,23
9002) 305000 1500000 1900000 130 170M6147 170M6197 170M6247 1 1,23
10002) 450000 2150000 2750000 135 170M6148 170M6198 170M6248 1 1,23
11002) 575000 2800000 3600000 140 170M6149 170M6199 170M6249 1 1,23
12501) 810000 39500001)   145 170M6150 170M6200 170M6250 1 1,23
14001) 1250000 60000001)   150 170M6151 170M6201 170M6251 1 1,23

Caution
1)– 1100V,2)– 1250V

Table. Drawing 1.


Size
[mm]
ABB1CC1D
KN80/KN110
EF
1* 50 104 134 78 108 58/59 45 22
1 50 108 138 78 108 66/69 53 25
2 50 108 138 78 108 75/77 61 25
3 51 109 139 78 108 90/92 76 30

Caution
C1 - consider fuses type -/110, -TN/110, -KN/110
dimensions [mm] 690V with micro-relay type T
RW dimensions [mm] 690V with micro-relay type K


Table. Drawing 2.


Size
[mm]
ABDD- for fuses for micro-relay type kEH
1* 80 138 58 58/59 45 20
1 80 138 66 66/69 53 25
2 80 138 75 75/77 61 25
3 81 138 90 90/92 76 30

Dimensions [mm] 1250V with micro-relay type T
