Traffic light Ex AR-043-DP01

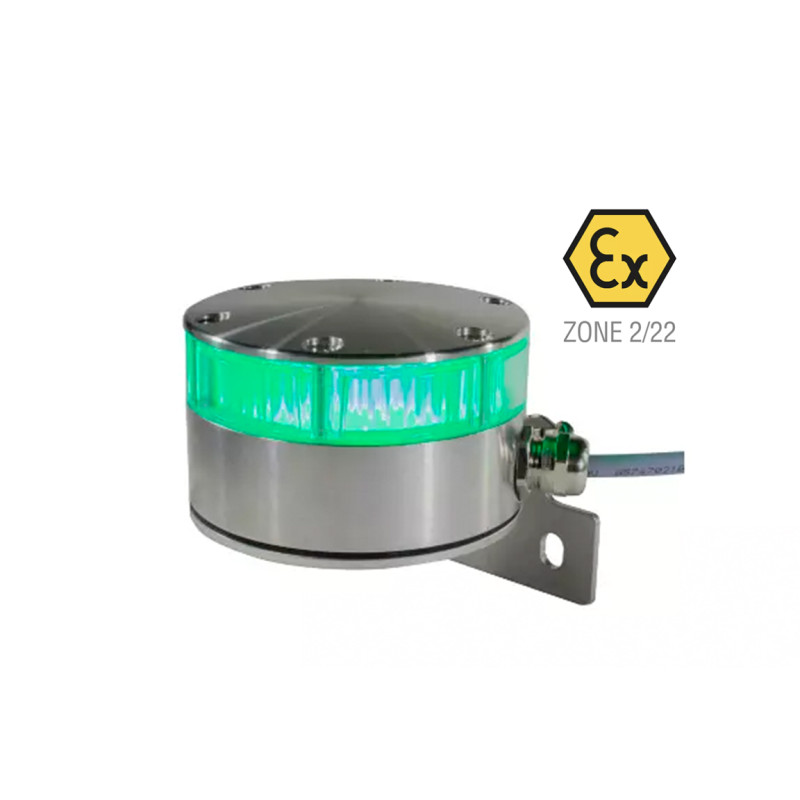

AR-043 — Explosion-proof LED Beacon

Compact, omnidirectional beacon for Zones 2/22 (ATEX II 3G/II 3D). Its AISI 316 stainless steel or anodized aluminum body, thick polycarbonate window, O-ring seal, and encapsulated electronics ensure high environmental resistance IP65. It operates in continuous or 1 Hz flashing mode. The 5m fixed cable facilitates installation on cabinets and machines.

Parameters and functions

• Ex marking: II 3G Ex mc IIC T4 Gc / II 3D Ex mc IIIC T135°C Dc
• Source: 15 × LEDs (continuous or flashing 1 Hz – user selectable)
• Colors: red 625 nm, yellow/orange 610 nm, green 530 nm
• Power supply: 24 V DC ±10%, current consumption approx. 160 mA (@24 V DC)
• Construction: AISI 316 or anodized aluminum; PC window; Stainless steel mounting bracket
• Wiring: 4×0.75 mm² solid wire, 5 m long (radial or axial output)
• Environmental resistance: IP65; operating temperature -20…+60 °C

Technical data

Explosion protection	II 3G Ex mc IIC T4 Gc; II 3D Ex mc IIIC T135°C Dc
EU Directives	2014/34/EU (ATEX 114), 2014/30/EU (EMC)
Standards	EN 60079-0:2018; EN 60079-18:2015/A1:2017
Light Color	Red 625 nm / Yellow 610 nm / Green 530 nm
Brightness (luminance)	Red: 4,250 cd/m²; Yellow/Orange: 6,350 cd/m²; Green: 8,300 cd/m²
Material	Body: AISI 316 or anodized aluminum; Impact-resistant PC window
Protection class	IP65 (EN 60529)
Voltage	24 V DC ±10%
Rated current	160 mA @ 24 V DC
Connection	solid wire 4×0.75 mm², 5 m long
Grounding	external, stainless steel, 4 mm²
Temperature Operating Temperature -20…+60 °C Dimensions Ø 95 × 60 mm (without stuffing box) Mounting Stainless Steel Bracket Weight 1.750 kg (stainless steel) / 930 g (aluminum) Body Table Less Read more AR-043.pdf Send an inquiry Are you interested in this product? Do you need additional information or individual pricing? Contact us Ask for the product Write your review I accept the privacy policy of the DACPOL website. * Notify me when available ASK FOR THE PRODUCT close Thank you for sending your message. We will respond as soon as possible. ASK FOR THE PRODUCT close First name and last name Telephone Company name PIN E-mail Ask for the product Question Attach a file Browse Akceptuję politykę prywatności Required field send an inquiry Add to Wishlist You must be logged in Sign in You don't have an account? Register download pdf download pdf Product Details Downloads AR-043 — Explosion-proof LED Beacon Compact, omnidirectional beacon for Zones 2/22 (ATEX II 3G/II 3D). Its AISI 316 stainless steel or anodized aluminum body, thick polycarbonate window, O-ring seal, and encapsulated electronics ensure high environmental resistance IP65. It operates in continuous or 1 Hz flashing mode. The 5m fixed cable facilitates installation on cabinets and machines. Parameters and functions Ex marking: II 3G Ex mc IIC T4 Gc / II 3D Ex mc IIIC T135°C Dc Source: 15 × LEDs (continuous or flashing 1 Hz – user selectable) Colors: red 625 nm, yellow/orange 610 nm, green 530 nm Power supply: 24 V DC ±10%, current consumption approx. 160 mA (@24 V DC) Construction: AISI 316 or anodized aluminum; PC window; Stainless steel mounting bracket Wiring: 4×0.75 mm² solid wire, 5 m long (radial or axial output) Environmental resistance: IP65; operating temperature -20…+60 °C Technical data Explosion protection II 3G Ex mc IIC T4 Gc; II 3D Ex mc IIIC T135°C Dc EU Directives 2014/34/EU (ATEX 114), 2014/30/EU (EMC) Standards EN 60079-0:2018; EN 60079-18:2015/A1:2017 Light Color Red 625 nm / Yellow 610 nm / Green 530 nm Brightness (luminance) Red: 4,250 cd/m²; Yellow/Orange: 6,350 cd/m²; Green: 8,300 cd/m² Material Body: AISI 316 or anodized aluminum; Impact-resistant PC window Protection class IP65 (EN 60529) Voltage 24 V DC ±10% Rated current 160 mA @ 24 V DC Connection solid wire 4×0.75 mm², 5 m long Grounding external, stainless steel, 4 mm² Temperature Operating Temperature -20…+60 °C Dimensions Ø 95 × 60 mm (without stuffing box) Mounting Stainless Steel Bracket Weight 1.750 kg (stainless steel) / 930 g (aluminum) Body Table Less Read more AR-043.pdf Comments (0) Be the first to write your review Your review appreciation cannot be sent OK Report comment Are you sure that you want to report this comment? No Yes Report sent Your report has been submitted and will be considered by a moderator. OK Your report cannot be sent OK Write your review × Traffic light Ex AR-043-DP01 Rate: Title* Your name* Review* I accept the privacy policy of the DACPOL website. * * Required fields Cancel Send Review sent Your comment has been submitted and will be available once approved by a moderator. OK Your review cannot be sent OK × × This store asks you to accept cookies for performance, social media and advertising purposes. Social media and advertising cookies of third parties are used to offer you social media functionalities and personalized ads. Do you accept these cookies and the processing of personal data involved? Necessary cookies Always enabled Necessary cookies help make a website usable by enabling basic functions like page navigation and access to secure areas of the website. The website cannot function properly without these cookies. Preference cookies No Yes Preference cookies enable a website to remember information that changes the way the website behaves or looks, like your preferred language or the region that you are in. Statistic cookies No Yes Statistic cookies help website owners to understand how visitors interact with websites by collecting and reporting information anonymously. Marketing cookies No Yes Marketing cookies are used to track visitors across websites. The intention is to display ads that are relevant and engaging for the individual user and thereby more valuable for publishers and third party advertisers. Configure Reject Accept Accept only selected cookies Accept all cookies ← Back × Content not available
