Manufacturer: Artidor

Traffic light Ex AR-047-DP01

  • AR-047-DP01

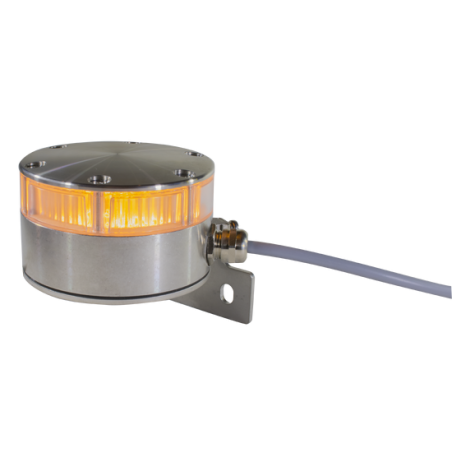

AR-047 — Explosion-proof LED Beacon

Compact, omnidirectional warning beacon for zones 1/21 (also 2/22). The AISI 316 stainless steel or anodized aluminum body, 20 mm polycarbonate window, seals, and encapsulated electronics ensure high environmental resistance IP65. Continuous or 1 Hz flashing operation, 24–48 V DC power supply.

Parameters and functions

  • Ex marking: II 2G Ex mb IIC T4 Gb • II 2D Ex mb IIIC T135°C Db
  • Zones: 1, 2, 21, 22
  • Light source: LED (continuous or 1 Hz flashing light – user selectable)
  • Colors: red 625 nm / yellow-orange 610 nm / green 530 nm
  • Mechanics: AISI 316 or anodized aluminum body; 20 mm PC window; stainless steel bracket
  • Wiring: 4×0.75 mm² fixed cable, 5 m long; 4 mm² external grounding
  • Environmental resistance: IP65 (EN 60529)
  • Power supply: 24–48 V DC ±10% (approx. 160 mA @ 24 V DC)

Certifications: DEKRA 23ATEX0068X (ATEX), IECEx DEK 23.0048X (IECEx). Compliance with 2014/34/EU (ATEX 114) and 2014/30/EU (EMC); Standards: EN IEC 60079-0:2018, EN 60079-18:2015/A1:2017.

Technical Data

Explosion ProtectionII 2G Ex mb IIC T4 Gb; II 2D Ex mb IIIC T135°C Db
EU Directives2014/34/EU (ATEX 114); 2014/30/EU (EMC)
StandardsEN IEC 60079-0:2018; EN 60079-18:2015/A1:2017
Light colorRed 625 nm / Yellow 610 nm / Green 530 nm
Brightness (luminance)Red: 4,250 cd/m²; Yellow/Orange: 6,350 cd/m²; Green: 8,300 cd/m²
MaterialBody AISI 316 or anodized aluminum; PC window 20 mm
Protection classIP65 (EN 60529)
Supply voltage24–48 V DC ±10%
Rated currentapprox. 160 mA @ 24 V DC
Connectionsolid cable 4×0.75 mm², length 5 m
GroundingExternal, stainless steel, 4 mm²
Ambient temperature-20…+60°C
DimensionsØ95 × 60 mm (without cable gland)
MountingStainless steel bracket
Weight1,750 kg (stainless steel) / 930 g (aluminum)
