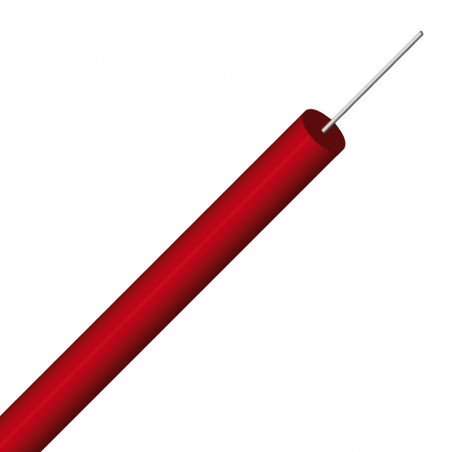

SILICABLE HT - Ignition wires -60°C to +180°C
SILICABLE HT - Ignition wires -60°C to +180°C

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: OMERIN

SILICABLE HT - Ignition wires -60°C to +180°C

Technical data:
- operation temperature -60°C - +180°C,
- max temporary temperature: +230°C,
- high resistance for thermal shock, humidity, ozone
- don't spread the fire
- pulse voltage 5kV - 20kV,
- operation voltage: 1,8/3kV.

Product:
- main products in table,

Packing
- rollers,  spools,barrels , SILIBOX

Type

Section
[mm2]

Wire quantity x
wire diameter
[mm]

Linear resistance @
20°C
)
[Ω/km]

Silicone shield diameter
[mm]

Nominal outside diameter
[mm]

Drawing

(E)CS-HT

0,25

8x0,20

80,90

1,15

3,00

0,34

7x0,25

59,20

1,10

3,00

0,50

16x0,20

40,10

1,00

3,00

1,00

32x0,20

 20,00

2,45

6,20

1,50

30x0,25

13,70

2,70

7,00

2,50

50x0,25

 8,21 3,45

9,00

4,00

56x0,30

5,09

3,70

10,00

ECS-HT-VDE

1,00

32x0,20

20,00

1,30

3,90

1,50

30x0,25

13,70

1,30

4,20

(E)CSV-HT lub
(E)CSVRI-HT

0,34

7x0,25

59,20

 0,90

3,00

0,50

16x0,20

40,10

0,90

3,10

(E)CSVCS-HT

1,34

19x0,30

15,00

2,75

7,00

1,50

30x0,25

13,70

2,85

7,30

CSABI-HT

1,50

30x0,25

13,70

3,20

10,00

2,50

50x0,25

8,21

3,50

11,00

4,00

56x0,30

5,09

3,70

12,00



AWG

operation temperature
j°C

insulation test voltage

Structure

Type

 shield diameter
mm

Drawing

22 do 12

200

10kV AC
(25 kV)

stiff or elastic

tinned, nickled, silvered

1,0

Less
