SILIGAINE® GT 1 -60 °C to +300 °C
SILIGAINE® GT 1 -60 °C to +300 °C

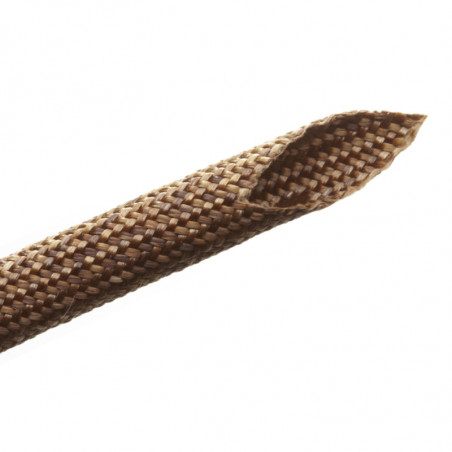

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: OMERIN

SILIGAINE® GT 1 -60 °C to +300 °C

Characteristics
• Continuous operating temperature: -60 °C to +300 °C.
• Peak temperatures (few minutes): +350 °C.
• Good resistance to thermal shock.
• Very good ageing in hot environment
• Good resistance to atmospheric agents. UV, ozone, oxygen.
• Good resistance to common chemical agents.
• Dielectric strength (dry): > 800 V.

Standard products
• Colour: mottled brown.

Packaging
• Diameters from 0.5 to 10 mm: 100 m rolls
• Diameters > 10 mm: contact us.

Standards
• IEC 60684-1 and 60684-2.

Applications
• Cabling for heating elements.
• Sheathing of cable harnesses for cables subject to high temperature and mechanical constraints.

Options
• Other diameters: contact us.
• Sleevings cut to length: contact us.
• Double braid: SILIGAINE® GT 2: dielectric strength > 1.5 kV.
• Triple braid: SILIGAINE® GT 3: dielectric strength > 2.0 kV.

INTERNAL DIAMETER SILIGAINE GT 1
Nominal value** (mm) Approximate wall thickness (mm) Approximate linear weight (kg/km)
0.5 0.40 2.9
1 0.40 3.4
1.5 0.40 4.2
2 0.40 4.8
2.5 0.40 6.0
3 0.40 6.5
3.5 0.40 7.6
4 0.40 9.3
4.5 0.40 10.4
5 0.40 10.6
6 0.40 12.1
7 0.50 13.6
8 0.50 14.9
9 0.50 17.9
10 0.50 17.9
12 0.60 21.3
14 0.60 25.3
16 0.60 30.2
18 0.60 36.7
20 0.60 47.1
22 0.80 49.1
25 1.0 94.5
30 1.0 108
35 1.0 102
40 1.2 172
50 1.2 190
60 1.2 230
