Manufacturer: SALTEK

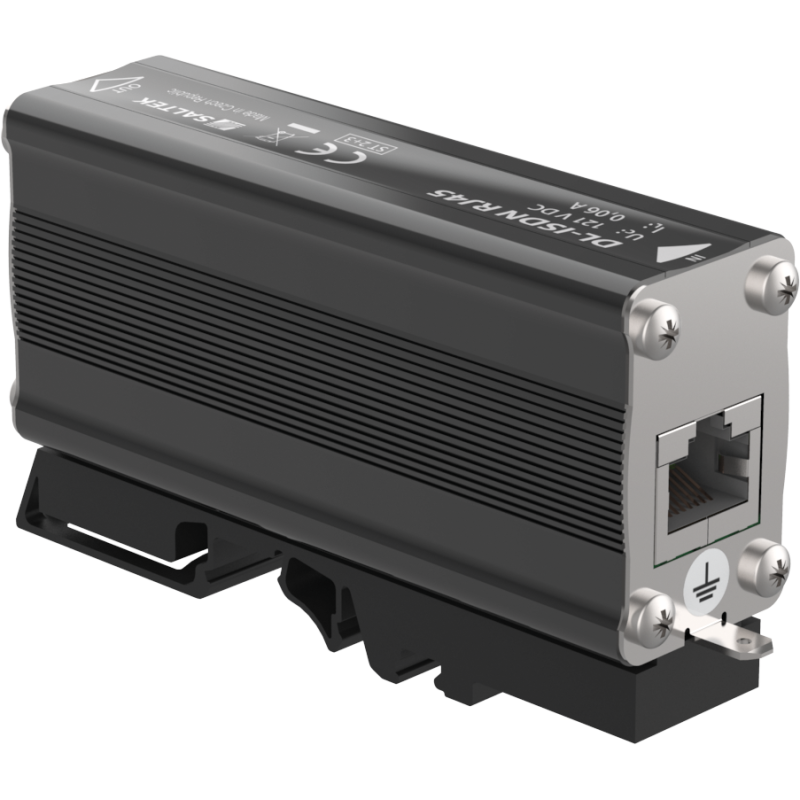

DL-ISDN RJ45 - Surge protector - SPD

  • DL-ISDN RJ45
  • Protection rating IP 20
  • Type of SPD C2,C3
  • Maximum operating voltage 86.00 V AC
Parameter name Parameter value
Type of SPD C2,C3
Location of SPD ST 2+3
Mounting DIN rail 35 mm
Maximum operating voltage Uc 86.00 V AC
Maximum operating voltage Uc 121.00 V DC
Serial resistance per core R 6.80 Ω
C2 nominal discharge current (8/20 µs) per core In 2.50 kA
Nominal load current IL 0.060 A
C2 voltage protection level mode core-PE at In Up 300 V
C2 voltage protection level mode core-core at In Up 270 V
C3 voltage protection level mode core-PE at 1 kV/µs Up 400 V
C3 voltage protection level mode core-core at 1 kV/µs Up 180 V
Response time core-core ta 1 ns
Response time core-PE ta 100 ns
Connection (input - output) RJ 45/RJ 45
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC000943
Customs tariff number 85363010
EAN 8595090533825
