Manufacturer: SALTEK

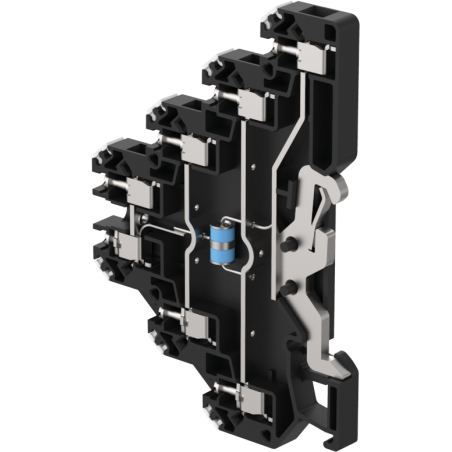

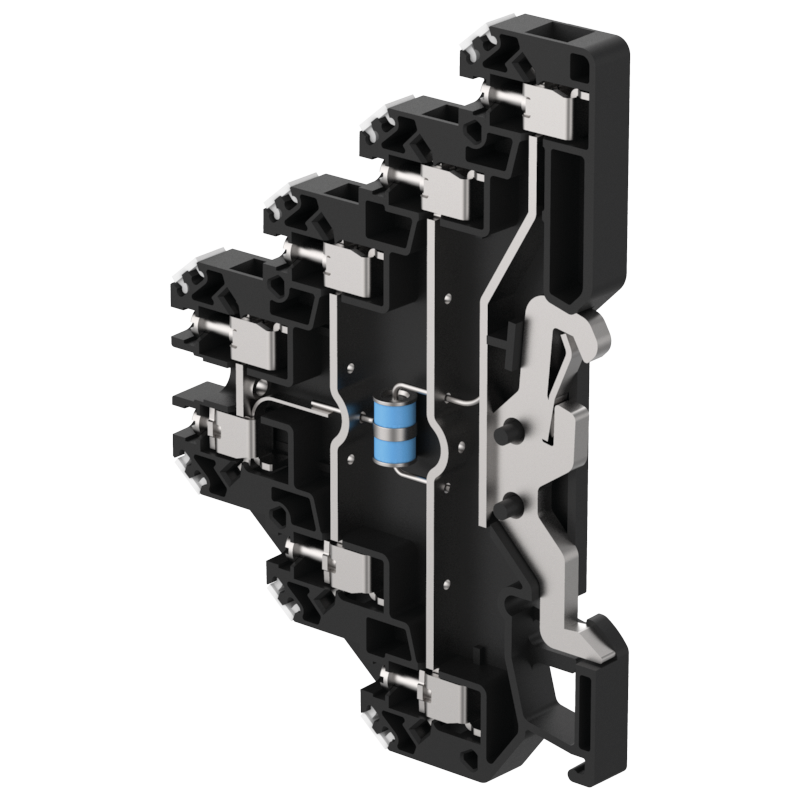

DS-V130-RS - Surge protector - SPD

  • DS-V130-RS
  • Type of SPD C2
  • Maximum operating voltage 140.00 V AC
Parameter name Parameter value
Type of SPD C2
Location of SPD ST 2
Mounting DIN rail 35 mm
Maximum operating voltage Uc 140.00 V AC
Maximum operating voltage Uc 180.00 V DC
Nominal load current IL 16.000 A
C2 nominal discharge current (8/20 µs) per core In 6.00 kA
C2 voltage protection level mode core-PE at In Up 530 V
Response time core-PE ta 25 ns
Connection (input - output) terminals-terminals
Cross-section of connected conductors solid (min) 0.14 mm2
Cross-section of connected conductors solid (max) 4.00 mm2
Cross-section of connected conductors stranded (min) 0.14 mm2
Cross-section of connected conductors stranded (max) 2.50 mm2
Range of ambient temperatures (min/max) -40 / 70 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC000943
Customs tariff number 85363010
EAN 8595090551515
