Manufacturer: SALTEK

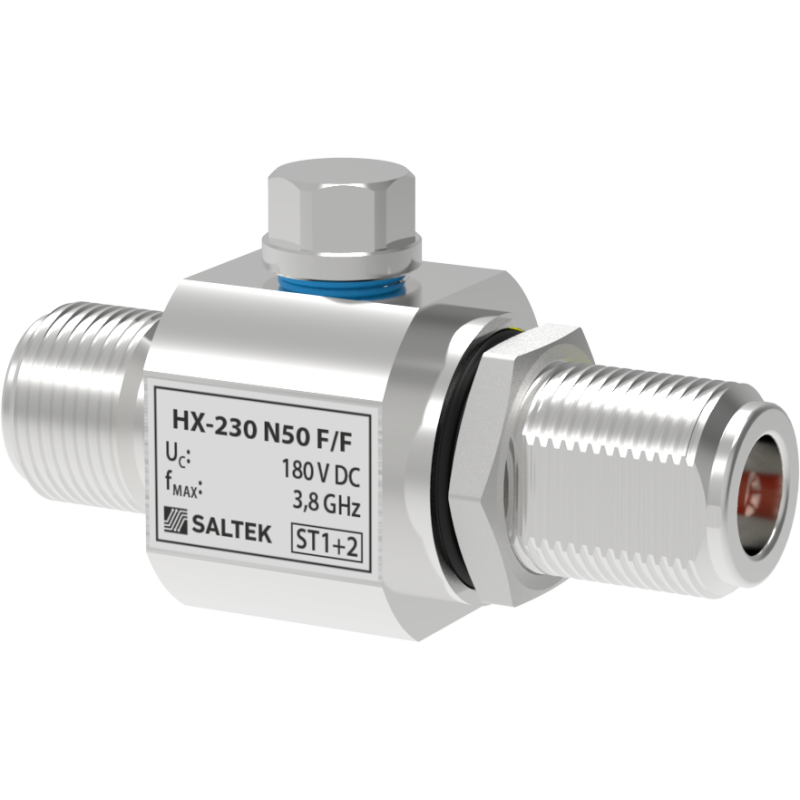

HX-230 N50 F/F - Surge protector - SPD

  • HX-230 N50 F/F
  • Protection rating IP 66
  • Type of SPD D1,C2
  • Maximum operating voltage 180.00 V DC
Parameter name Parameter value
Type of SPD D1,C2
Location of SPD ST 1+2
Maximum operating voltage Uc 180.00 V DC
Nominal load current IL 6.000 A
Frequency range f 0,00 - 3800,00 MHz
Impedance Z 50 Ω
Power (CW) P 395.00 W
Insertion loss typ. (max.) A 0,2 (0,4) dB
VSWR typ. (max.) VSWR 1,1 (1,2)
D1 impulse discharge current (10/350 µs) core-PE Iimp 2.50 kA
C2 nominal discharge current (8/20 µs) core-PE In 10.00 kA
Dynamic spark-over voltage at 1kV/µs Udyn 800.00 V
Response time core-PE ta 100 ns
Connection (input - output) N 50
Degree of protection IP 66
Range of ambient temperatures (min/max) -40 / 80 °C
According to standard EN 61643-21+A1,A2:2013, IEC 61643-21+A1,A2:2012
ETIM Class EC001466
Customs tariff number 85363010
EAN 8595090535119
