Manufacturer: SALTEK

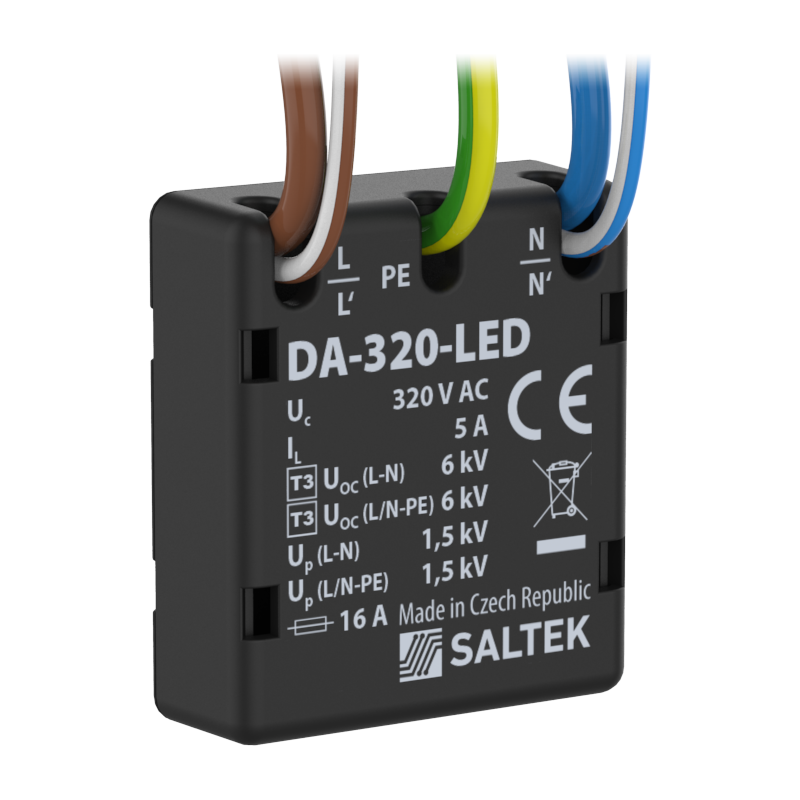

DA-320-LED - Surge protector - SPD

  • DA-320-LED
  • Rated voltage 230 V AC
  • Protection rating IP 20
  • Type of SPD T3
  • Remote indication potential open contact
  • Maximum operating voltage 320.00 V AC
Parameter name Parameter value
Type of SPD T3
Mounting installation box
Nominal voltage Un 230 V AC
Maximum operating voltage Uc 320.00 V AC
Nominal load current IL 5.000 A
Maximum overcurrent protection B 16 A
Short-circuit current rating ISCCR 1.5 kA
Nominal discharge current (8/20 µs) L-N In 3.00 kA
Nominal discharge current (8/20 µs) L+N-PE In 5.00 kA
Nominal discharge current (8/20 µs) N-PE In 3.00 kA
Test voltage L-N Uoc 6.0 kV
Test voltage L+N-PE Uoc 10.0 kV
Test voltage L-PE Uoc 6.0 kV
Test voltage N-PE Uoc 6.0 kV
Voltage protection level mode L-N Up 1.50 kV
Voltage protection level mode L-PE Up 1.50 kV
Voltage protection level mode N-PE Up 1.50 kV
Response time L-N ta 25 ns
Response time N-PE ta 100 ns
Fault indication loss of voltage
Remote indication potential open contact
Maximum current of signalling 1.00 A
Degree of protection IP 20
Range of ambient temperatures (min/max) -40 / 80 °C
Humidity 5 - 95 %
According to standard EN 61643-11:2012, IEC 61643-11:2011
ETIM Class EC000942
Customs tariff number 85363010
EAN 8595090567400
