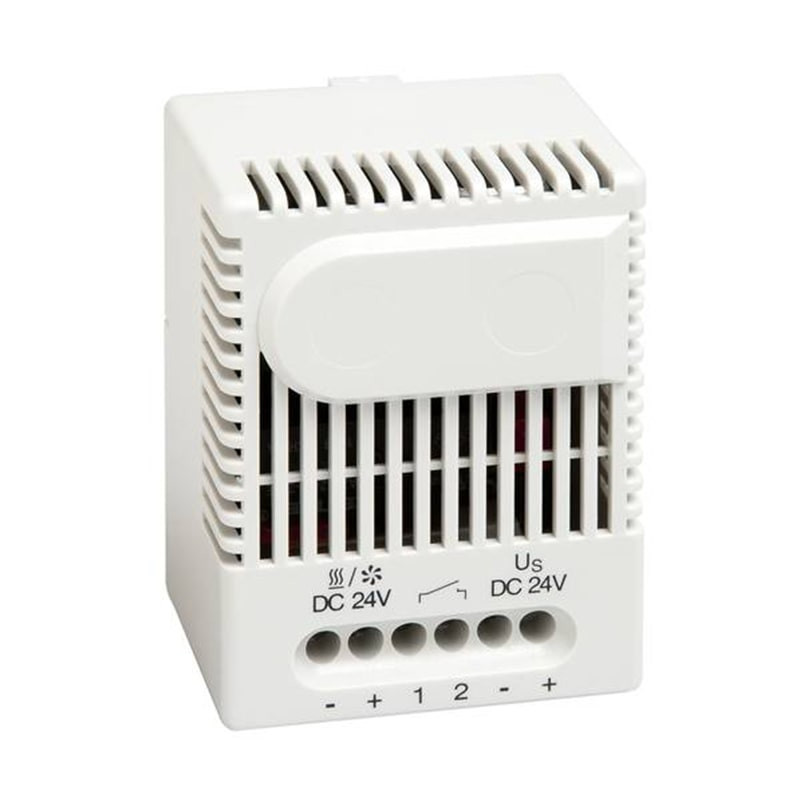

Switching module DC 24V and DC 48 VSM 010
  • Switching module DC 24V and DC 48 VSM 010

Photos are for informational purposes only. View product specification

Switching module DC 24V and DC 48 VSM 010

Switching module DC 24V and DC 48 VSM 010


<strong >Technical data
Contact type
NO (relay/MOSFET)
Contact resistance
< 10mOhm
Life time
> 100 000 cycles
EMC
EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Terminals
6 pole 2,5 mm2
Mounting
For DIN 35 mm bus, EN 50022
Casing
plastic  UL94V-0, light grey
Dimensions
67x50x46 mm
Weight
ok. 85 g
Assembly
Arbitrary
Operation temperature
-45 do +70 °C (-49 do +158 °F)
IP
IP20
Certificates
VDEi UL



Catalogue number
Article numberPower supplyMax contact current
01001.0-00 DC 24 V (DC 20-28 V) DC 28 V: 16 A (resistant load)
01000.0-00 DC 48 V (DC 38-56 V) DC 56 V: 16 A (resistant load)
