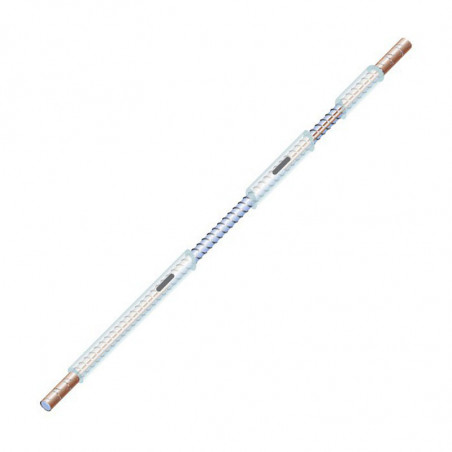

Terminated PVC insulated heating cables - CP1
  • Terminated PVC insulated heating cables - CP1

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Flexelec

Connection cables insulated PVC series CP1

Applications

CP1 heating cables are mainly incorporated in household electrical or refrigeration equipment and special, mass-produced machines requiring protection against freezing or temperature maintenance. To ensure that these heating elements enjoy a long service life, we recommend using a control device


Characteristics

The main characteristic of this type of heating cable is that there is no extra thickness at the cold junction, identified with a black mark.

  • UL Recognized cables on request.


  CP1
Heating wire nickel-copper or nickel-chrome
Insultaion PVC 105°C
Diameter 2.3 ~ 3.5 mm
Max. power 15 W/m
Voltage Any voltage on requestup to 500 V
Permissible surface temperature from - 30°C to + 105°C
Tolerances Resistance ± 10 %
Diameter + 0.2 /- 0.1 mm
Length: ± 1 %
Max. current 1 A
