Three phase filters with neutral F.LL.D3...AB series
Three phase filters with neutral F.LL.D3...AB series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Arcotronics

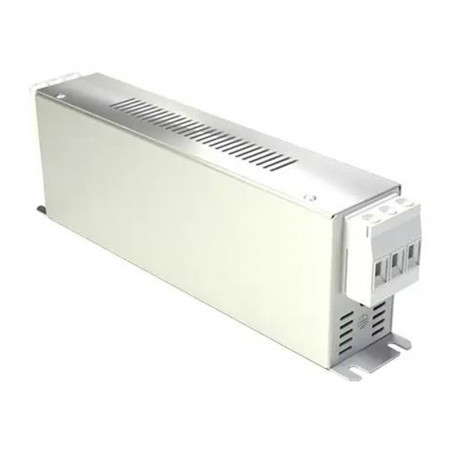

Three phase filters with neutral F.LL.D3...AB series

Nominal voltage (UN): 440V (between phases); 50/60Hz
PNominal current (IN): at ambient temperature 40°C
Leakage current  (IL): maximum value at UN/√3, 50Hz
Voltage test (2s) line - ground 2700 VDC or 1800VAC
line - line1075 VDC
Temperature range -25°C -88°C
Climatic category HPF (25/85/21)
Type IN
[A]		 L
[mH]		 Cx1
[µF]		 Cx2
[µF]		 Cy1
[pF]		 Cy2
[pF]		 IL
[mA]		 R
[mΩ]

Casing

drawing nr

F.LL.D3.025A.AB.01

 25 4 x 1,2 3 x 2,2 3 x 2,2 2 x 15000   < 3,2 3 x 0,47 A

F.LL.D3.036A.AB.01

 36 4 x 0,95 3 x 2,2 3 x 2,2 2 x 15000   < 3,2 3 x 0,1 A

F.LL.D4.036A.AB.03

 36 4 x 1,3 3 x 2,2 3 x 2,2 2 x 15000   < 3,2 3 x 0,1 D

F.LL.D3.050A.AB.01

 50 4 x 2 3 x 2,2 3 x 2,2 2 x 15000   < 3,2 3 x 0,47 B

F.LL.D4.050A.AB.R3

 50 4 x 0,5 3 x 2,2 3 x 2,2 2 x 22000 3 x 4700 < 6,1 3 x 0,1 E

F.LL.D3.063A.AB.01

 63 4 x 0,7 3 x 2,2 3 x 2,2 2 x 15000   < 3,2 3 x 0,47 B

F.LL.D3.063A.AB.08

 63 4 x 0,7 3 x 2,2 3 x 2,2 2 x 15000   < 3,2 3 x 0,47 C
Scheme
rys
Characteristics - damping
rys
Dimensions[mm] and terminals

CasingA
rys

CasingB
rys

CasingC
rys

CasingD
rys

CasingE
rys
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
