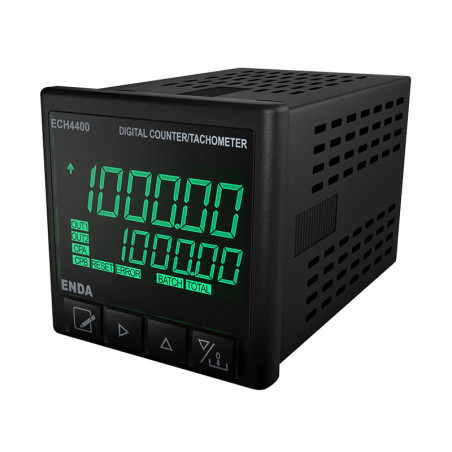

Pulse counter and tachometer ECH series

Product withdrawn from sale
Replacement model - ENDA EM4401 Digital Timer

• 48x48mm and 72x72mm sizes.
• 2x6 digits indicator.
• Programmable as Counter and RPM/Tachometer.
• 6 Digits Batch Counter.
• 9 Digits Total Counter.
• Period time differences, pulse time, turnover and speed measurement.
• Easy to use front panel keypad.
• Counts Up or Down acording to input phase difference.
• Input frequency can be selected.
• Input signal can be calibrated to the desired value by multiplying between 0.000001 and 99.9999.
• Decimal point can be set between 1 and 5.
• Sensor input type can be selected by using keyped ( PNP, NPN ).
• Dual setpoint and dual contact relay.
• SET1 can be selected to dependent on SET2.
• Output contact relay can be adjusted to continuous output or between
• 0.01 and 999.9-second intervals.
• Output delay time can be adjusted in Tachometer Mode.
• Functional reset selection.
• 0 - 500000 Offset selection.
• Parameter access protection.
• Easy installation.
• RS485 Modbus communication interface (Specify)

Connection diagram:
