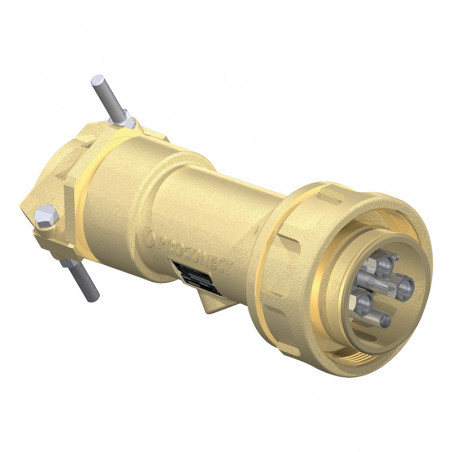

Twisted ring joints 3PV4-3PV5 200-800 A
  • Twisted ring joints 3PV4-3PV5 200-800 A

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Proconect

Annular twisted 3PV4-3PV5 200-800 A connectors

Technical data

Electrical preferences:
- max. voltage: 3,3kV AC,
- test voltage: 3PV4: > 10kV 50Hz 1min, 3PV5, 3PV6: > 13kV 50Hz 1min,
- current: see tables,
- contact resistance: < 1m Ω,
- IP: IP 67 - IK10,
s - designed according to: N.F.C. 63300, CEI 309-1.


Dimensions [mm]

Panel socket
  A
Diameter		 B C D
Diameter		 E
Diameter		 F
Diameter		   Weight
3PV4 105 55 75 116 92 11   1,4 kg
3PV5 130 60 85 158 120 13   3,5 kg
PIN
  A
Diameter		 B   Weight
3PV4 130 282   2,2 kg
3PV5 155 395   4,7kg
Cable connector
  A
Diameter		 B   Weight
3PV4 305 132   2,4 kg
3PV5 412 155   5,0kg
PIN
  A
Diameter		 B C D E F G H
Diameter
3PV4 11 92 116 92 116 107 20 105
3PV5 13 120 158 120 158 120 20 130

3PV4

Panel socket

Contacts Cable section[mm2] Female insert IP2 Male insert
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 250 50 10 330 340 N 330 397 N
2P+E+2p 250 70 10 330 342 N 330 399 N
3P+E+2p 250 50 10 330 344 N 330 405 N
3P+E+2p 250 70 10 330 156 N 330 407 N
4P+E+2p 200 35 6 330 346 N 330 413 N
4P+E+2p 200 50 6 330 158 N 330 415 N
4P+E+2p 200 70 6 331 326 N 331 327 N


Insert
Contacts Cable section
[mm2]		 Cable external diameter
[mm]		 Female insert Male insert IP2
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 250 50 10 32-42 330 339 N 330 396 N
2P+E+2p 250 70 10 43-54 330 341 N 330 398 N
3P+E+2p 250 50 10 32-42 330 343 N 330 404 N
3P+E+2p 250 70 10 43-54 330 155 N 330 406 N
4P+E+2p 200 35 6 32-42 330 345 N 330 421 N
4P+E+2p 200 5 6 32-42 330 157 N 330 414 N
4P+E+2p 200 70 6 43-54 331 328 N 331 329 N


Cable-socket connector


Contacts Cable section[mm2] Cable external diameter
[mm]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 250 50 10 32-42 330 400N
2P+E+2p 250 50 10 43-54 330 402 N
3P+E+2p 250 50 10 32-42 330 408N
3P+E+2p 250 70 10 43-54 330 410 N
4P+E+2p 200 35 6 32-42 330 416 N
4P+E+2p 200 50 6 32-42 330 224 N
4P+E+2p 200 70 6 43-54 331 330 N


PIN


Contacts Cable section
[mm2]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 250 50 10 330 401 N
2P+E+2p 250 70 10 330 403 N
3P+E+2p 250 50 10 330 409 N
3P+E+2p 250 70 10 330 411 N
4P+E+2p 200 35 6 330 417 N
4P+E+2p 200 50 6 330 223 N
4P+E+2p 200 70 6 331 331 N



3PV5

Panel socket


Contacts Cable section[mm2] Female insert IP2 Male insert
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 400 95 10 330 348 N 330 419 N
2P+E+2p 400 120 10 330 350 N 330 421 N
2P+E+2p 400 150 10 331 262 N 331 265 N
3P+E+2p 400 95 10 330 352 N 330 427 N
3P+E+2p 400 120 10 330 354 N 330 429 N
3P+E+2p 400 150 10 331 263 N 331 266 N
4P+E+2p 320 95 6 330 356 N 330 435 N
4P+E+2p 320 120 6 330 160 N 330 437 N
4P+E+2p 320 150 6 331 264 N 331 267 N


PIN

Contacts Cable section[mm2] Cable external diameter
[mm]		 Male insert Female insert IP2
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 400 95 10 45-55 330 347 N 330 418 N
2P+E+2p 400 120 10 45-55 330 349 N 330 420 N
2P+E+2p 400 150 10 52-62 331 268 N 331 271 N
3P+E+2p 400 95 10 45-55 330 351 N 330 426 N
3P+E+2p 400 120 10 52-62 330 353 N 330 428 N
3P+E+2p 400 150 10 52-62 331 269 N 331 272 N
3P+E+2p 400 150 10 63-76 331 429 N 331 428 N
4P+E+2p 320 95 6 52-62 330 355 N 330 434 N
4P+E+2p 320 120 6 52-62 330 159 N 330 436 N
4P+E+2p 320 150 6 52-62 331 270 N 331 273 N
4P+E+2p 320 150 6 63-76 331 431 N 331 430 N


Cable - socket connector


Contacts Cable section[mm2] Cable external diameter
[mm]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 400 95 10 45-55 330 422 N
2P+E+2p 400 120 10 45-55 330 424 N
2P+E+2p 400 150 10 52-62 331 274 N
3P+E+2p 400 95 10 45-55 330 430 N
3P+E+2p 400 120 10 52-62 330 432 N
3P+E+2p 400 150 10 52-52 331 275 N
4P+E+2p 320 95 6 52-62 330 438 N
4P+E+2p 320 120 6 52-62 330 440 N
4P+E+2p 320 150 6 52-62 331 276 N

PIN

Contacts Cable section
[mm2]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 400 95 10 330 423 N
2P+E+2p 400 120 10 330 425 N
2P+E+2p 400 150 10 331 277N
3P+E+2p 400 95 10 330 431 N
3P+E+2p 400 120 10 330 433 N
3P+E+2p 400 150 10 331 278 N
4P+E+2p 320 95 6 330 439 N
4P+E+2p 320 120 6 330 441 N
4P+E+2p 320 150 6 331 279 N


3PV6

Panel socket


Contacts Cable section
[mm2]		 Female insert IP2 Male insert
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 800 240 6 330 358 330 443
2P+E+2p 800 300 6 330 360 330 445
3P+E+2p 800 240 6 330 362 330 451
3P+E+2p 800 300 6 330 364 330 453
4P+E+2p 640 185 6 330 366 330 459
4P+E+2p 640 240 6 330 368 330 461


PIN

Contacts Cable section
[mm2]		 Cable external diameter
[mm]		 Male insert Female insert IP2
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 800 240 6 52-72 330 357 330 442
2P+E+2p 800 300 6 75-90 330 359 330 444
3P+E+2p 800 240 6 75-90 330 361 330 450
3P+E+2p 800 300 6 85-100 330 363 330 452
4P+E+2p 640 185 6 75-90 330 365 330 458
4P+E+2p 640 240 6 85-100 330 367 330 460


Cable - socket connector
Contacts Cable section[mm2] Cable external diameter
[mm]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 800 240 6 52-72 330 446
2P+E+2p 800 300 6 75-90 330 448
3P+E+2p 800 240 6 75-90 330 454
3P+E+2p 800 300 6 85-100 330 456
4P+E+2p 640 185 6 75-90 330 462
4P+E+2p 640 240 6 85-100 330 464


PIN

Contacts Cable section
[mm2]		 Marking
Quantity Prąd
[A]		 Phase Pilot
2P+E+2p 800 240 6 330 447
2P+E+2p 800 300 6 330 449
3P+E+2p 800 240 6 330 455
3P+E+2p 800 300 6 330 457
4P+E+2p 640 185 6 330 463


Panel socket
PIN
Cable connector
PIN
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us

ASK FOR THE PRODUCT close
