Manufacturer: CAMDENBOSS

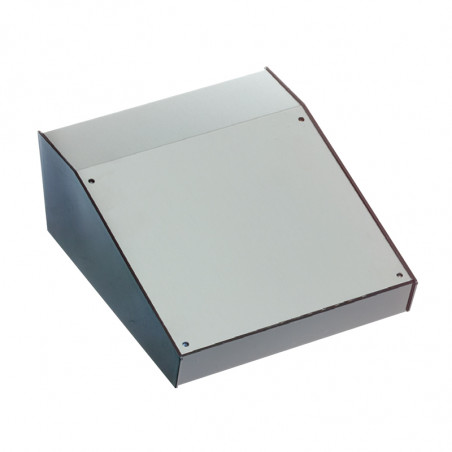

Venti 6000 series - Metal desktop housing

ABS desktop enclosure, available in three sizes with an aluminum front panel.

Parameters:

• Gray aluminum front plate mounted with M3 screws
• Nicely finished surface
• Internal guides with a height of 1.5 mm for mounting PCBs on the front and rear wall
• Ventilation holes in the base

Material:

• Gray aluminum panel with a thickness of 1 mm
• Base made of high-quality ABS
• Temperature resistance up to 85ºC

Options: ABS UL 94 V0

Protection degree and standard colors:

• Unqualified IP rating
• Gray, black and white

The set includes:

• Aluminum panel and ABS base
• 4 x M3 mounting screws
• 4 x rubber feet

Dimensions

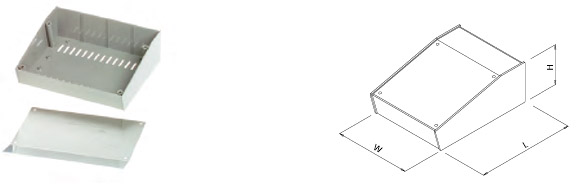

Venti 6000 Series – metal desktop enclosure dimensions

55.00
Product codeLength
[mm]
Width
[mm]
Height
[mm]
ColorPDF

BIM6005-BLK/PG

143.00 105.00 black PDF

BIM6005-GY/PG

143.00 105.00 55.00 gray PDF

BIM6006-BLK/PG

143.00 170.00 55.00 black PDF

BIM6006-GY/PG

143.00 170.00 55.00 gray PDF

BIM6007-BLK/PG

214.00 170.00 82.00 black PDF

BIM6007-GY/PG

214.00 170.00 82.00 gray PDF
