Manufacturer: ISAFE MOBILE EX

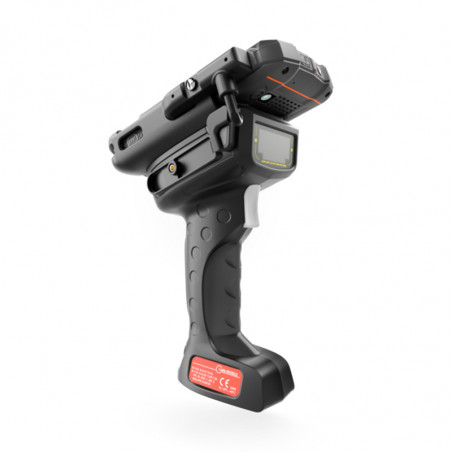

IS-TH1xx.1 - Drain handle with barcode scanner for zones 1/21

The mobile, all-in-one trigger handle (handheld barcode scanner) and the IS530.x industrial smartphone (available separately) are a flexible combination for reliable data acquisition in hazardous areas. The active HID, ready-to-use, high-performance scanner captures any 1D or 2D barcodes from close range up to 6 meters or from distances over 15 meters using Zebra's reliable OEM scan engines. Data is further processed directly by the IS530.x smartphone connected via the ISM interface.


Advantages

  • Reliable data acquisition and processing for 1D or 2D barcodes
  • Even over long distances of over 15 meters
  • Direct data transfer via the multifunction interface (ISM)
  • Power supplied by the connected device, so no battery required
  • Direct connection of the interface to the device, Bluetooth® is not required

Technical parameters

ATEX feature II 2G Ex ib op is IIC T4 Gb
II 2D Ex ib op is IIIC T135°C Db
IECEx Feature Ex ib op is IIC T4 Gb
Ex ib op is IIIC T135°C Db
Weight 500 g
Dimensions (H x W x L) 200 x 82 x 125 mm
Ingress Protection IP68 dust- and waterproof
Permissible Operating Temperature from -20°C to 60°C
Available Scan Types MR (Medium Range): Zebra SE4750 MR
ER (Extended Range): Zebra SE4850 ER


Kit Contents

  • Trigger Handle (Handheld Barcode Scanner)
  • Screwdriver
  • Instructions for Use
  • Safety Instructions
