Temperature control cases KOOLEX series
  • Temperature control cases KOOLEX series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: DESAPRO

Temperature control cases KOOLEX series

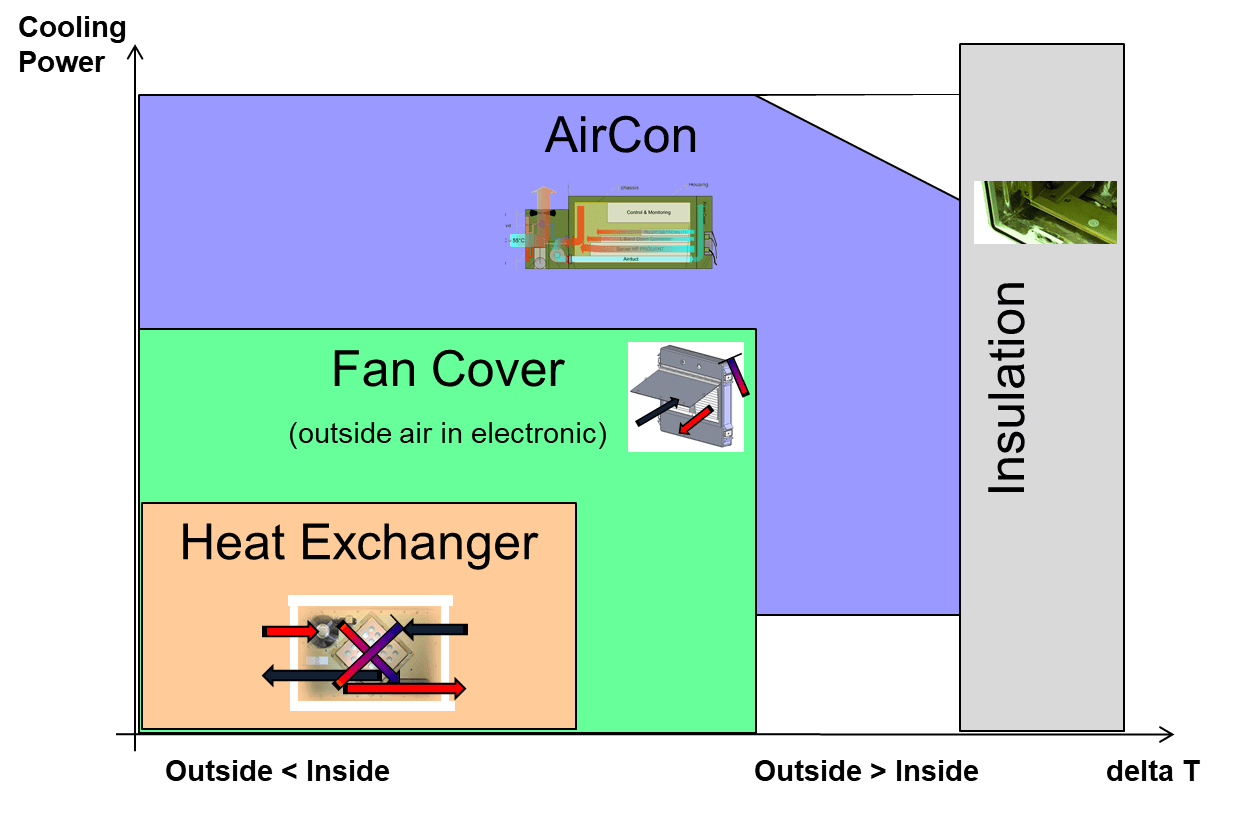

The KOOLEX family provides complete temperature control for the contents of the MILEX case. Our cooling solutions product line starts at the low end of complexity with fans and on the high end with active vapor cycle air conditioning. Depending on the heating or cooling requirements, availability and type of electrical power we will find the best system for any application.

Heat exchanger

The passive Heat Exchanger Cover operates with two forced air circulation loops that are not connected thereby allowing sealed operations.

This system cycles outside air into the heat exchanger where it passes over fins reducing the temperature of the fins which remove the heat. On the inside loop, the air in the case is brought into the heat exchanger releasing the temperature of the fins. The heat is passed from the inside loop to the outer loop via the fins (passive connection). The heat dissipation capability depends on the position of the case (stand alone, position against wall, stacked). It works most effectively when there is a temperature differential between the inside and outside of at least 20°C.

  • Cools by air changes
  • Air to air heat transfer
  • Unit is sealed against spray water and dust
  • IP65

Case heightDepthDelta °CW min.W max.
3U 219 20
6U 219 20
9U 219 20
12U 219 20 438 638
15U 219 20 461 661
3U 350 20
6U 350 20 414
9U 350 20 439
12U 350 20 465 651
15U 350 20 491 691
3U 480 20
6U 480 20 433
9U 480 20 462
12U 480 20 492 692
15U 480 20 521 721
3U 610 20
6U 610 20 453
9U 610 20 486
12U 610 20 518 718
15U 610 20 551 751

Fans

Many thermal control solutions can be met with a simple axial fan at one end of the case and an engineered (measured) opening at the opposite end.

  • Cools by air changes
  • Electrical 28VDC (110/220VAC also available)
  • Changes air 20x / minute
  • Filters may be installed as an option
  • Available in rugged COTS and MIL-STD configuration

Active cooling unit

Active cooling units provides complete temperature control for the MILEX rackmount cases. The A/C KOOLEX uses a self- contained R134A vapor cycle air conditioner. The A/C KOOLEX easily mounts to the MILEX rackmount transit case for access to the internal payload. The closed loop air flow pattern eliminates hot spots while maximizing cooling.

Also available with heating option for deep environmental temperatures to bring the equipment to operating temperature.

Please contact engineering for customized cooling/heating solutions.

Insulation

There are also methods of thermal insulation as techniques to limit heat/cold transfer. DESAPRO offers two methods:

Thermal insulating paint - as coating inside the case is an alternative to conventional insulation materials. It is lighter and less bulky in your structure and requires much less maintenance than conventional insulation.

Thermal insulating pads - as lining inside the case is another way to limit the heat transfer. DESAPRO can install insulation padding customer specifically.
