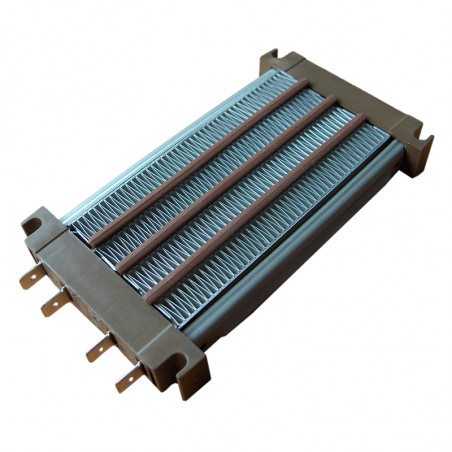

PTC heater power 600W to 5000W(rib casing )
PTC heater power 600W to 5000W(rib casing )

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: DBK

PTC heater power 600W to 5000W(rib casing )

PTC heater power 600W to 5000W(rib casing )

Type Power supply
[VAC]		 Current
[A]		 Power
[W]		 Required forced air flow
[m3/h]		 Dimensions
[mm]
L1 L2 B1/W1 B2/W2
HR01-10-22 220-240 15 1500 190 96 120.5 91 107
HR01-12-22 220-240 16 1700 190 96 120.5 91 107
HR02-10-22 220-240 15 1500 150 150 174 45 70.5
HR03-6-22 220-240 9 750 100 96.7 120.5 45 64.6
HR04-25-22 220-240 31 2800 225 150 174 68.5 97
HR05-9-22 220-240 14 1000 100 96 120 45 70.5
HR06-15-22 220-240 20 2000 150 150 174 45 70.5
HR09-6-22 220-240 9 700 75 96.7 120.5 36 53.2
HR11-3-22 220-240 5 350 55 96.7 120.5 25 40.2
HR15-15-22 220-240 18 1500 150 96 121 68.5 97.5
HR20-18-22 220-240 22 2000 200 96 120.5 93 107

HR04-25-22 IS 230 16 2000 250 150 174 72.5 100.5
400 28 2100 250
HR04-25-18 IS 230 20 2300 250 150 174 72.5 100.5
400 32 2400 250
HR05-9-22 IS 230 7 600 100 96 120 45 70.5
400 13 650 100
HR05-9-18 IS 230 8 750 100 96 120 45 70.5
400 13 800 100
HR06-10-22 IS 230 8 950 150 150 174 45 70.5
400 14 1000 150
HR06-10-18 IS 230 8 1100 150 150 174 45 70.5
400 14 1150 150
HR15-15-22 IS 230 10 1100 150 96 120.5 72.5 100.5
400 17 1150 150
HR15-15-18 IS 230 12 1350 150 96 120.5 72.5 100.5
400 20 1400 150
HR20-12-22 IS 230 8 1200 200 96 120.5 93 107.5
400 14 1300 200
HR20-12-18 IS 230 11 1500 200 96 120.5 93 107.5
400 16 1550 200
