Manufacturer: ZIEHL

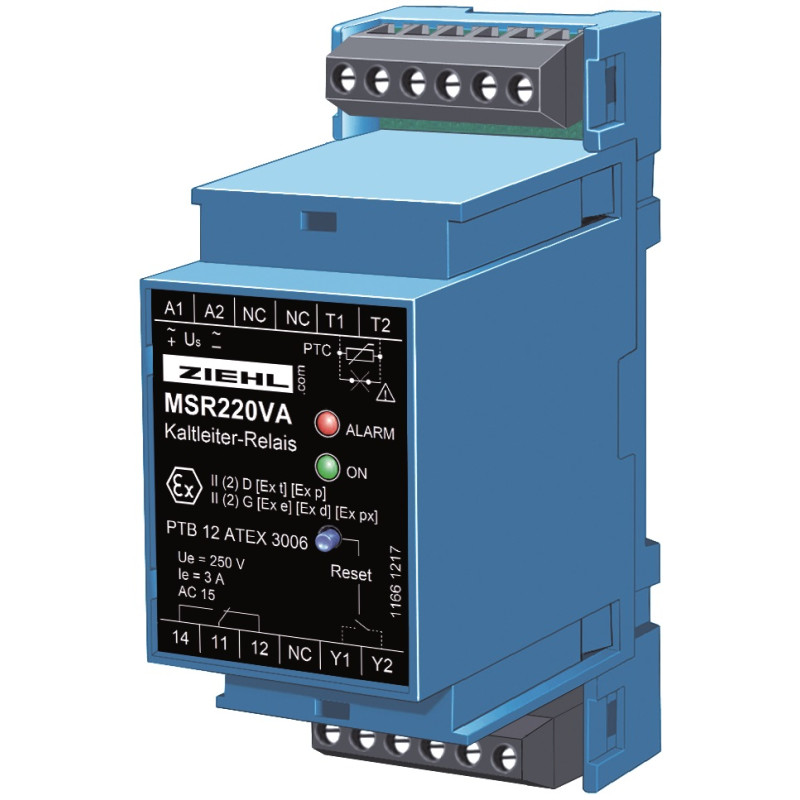

MSR220VA-AC-DC24V - PTC Thermistor Relay - T222431

  • T222431
  • Product Type IP54 motor, IP20 electronics
  • Additional information Metal
  • Supply voltage AC/DC 24 V
  • Execution Customer specific / IP 6K9K
  • Certificate UL/CSA, ATEX, EU / UKCA-Deklaracja Zgodności, UKCA
  • Output function Outputs/Relays
  • Measured value Electronic protection against reverse polarity and locked rotor.

Ziehl PTC thermistor relays protect motors, transformers, machines and equipment against thermal overload. These are according to DIN EN 60947-8 and are thus exchangeable. Used in conjunction with respective PTC thermistors they provide a reliable temperature protection in the temperature range 60 °C up to 180 °C.

PTC-thermistors according DIN 44081 and DIN 44082 shall be connected. PTC thermistors are suitable for the installation into windings of electrical machines, bearings and transformers as well as to monitor the temperature of liquid media, airflow and gases. With ATEX approval, explosion-protected equipment in explosive gas atmospheres (marking G: gas) or in areas with combustible dust (marking D: dust) can be protected.

Features

  • ATEX directive 2014/34/EU
  • 1 circuit for 3 or 6 PTC thermistors
  • Short-circuit detection within the thermistor circuit
  • Output relay with 1 change-over contact (co)
  • Operating status display with LED
  • electronic reclosing lock (disconnectable)
  • integrated RESET-button
  • link for external RESET
  • automatic RESET at voltage recoveryOperating status display with LED
