Manufacturer: RAFI

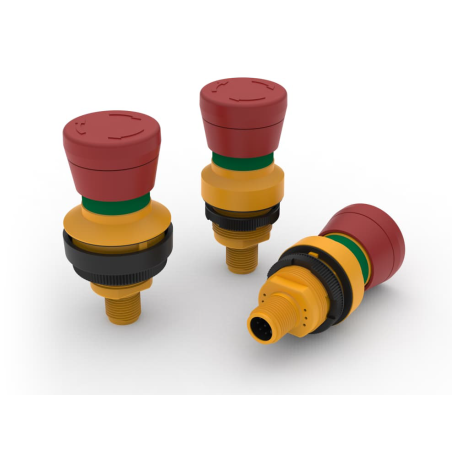

Emergency stop buttons RAMO E

The RAMO E emergency stop buttons with M12 connectors are designed with two NC (Normally Closed) contacts for a 35 V switching voltage. They comply with all relevant ISO and IEC standards and feature a simple design that saves installation time. Like the entire RAMO series, these emergency stop switches come equipped with a user-friendly M12 connector, minimizing the effort required for wiring.

Features:

Contacts 2 NC (Normally Closed)
Backlight None
Service Life 50,000 cycles
Maximum Rated Voltage 35 V DC
Maximum Rated Current 100 mA
Protection Level IP65 (front side)
IP65, IP67 (rear side)
Connector M12, 4-pole, a-coded
M12, 5-pole, a-coded
Reset by rotation
