Manufacturer: ALRE

SET 31 Zestaw do pełnej automatycznej hydraulicznej regulacji składający się z 5 termostatów pokojowych montowanych na powierzch

  • SET 31
  • Width (mm) 47 mm
  • Connection M30x1.5
  • Colour Gray-orange 2000/ similar to 7015
  • Housing material Plastic PA6
  • Protection rating IP54
  • Depth 53,1 mm
  • Power consumption 1,7 W
  • Ambient temperature 0 °C - 50 °C
  • Height (mm) 74,2 mm
  • Max. Current 130 mA for max. 200 ms
  • Nominal power L35L35 110 N
  • Cable Length (m) 1 m
  • Nominal power consumption 3,5 mm
  • Protection class II, after proper installation
  • Connection cross-section 2 x 0,34 mm² (flex)
  • Function type Closed in case of power failure
  • Maximum air humidity (non-condensing) 100 % r.H
  • Operating voltage 230 V AC / 50 Hz
  • Working time 180 s
  • Safety and electromagnetic compatibility According to DIN EN 60730
  • Temperature controller version Valve actuator
  • Closing dimension actuator 10,8 mm

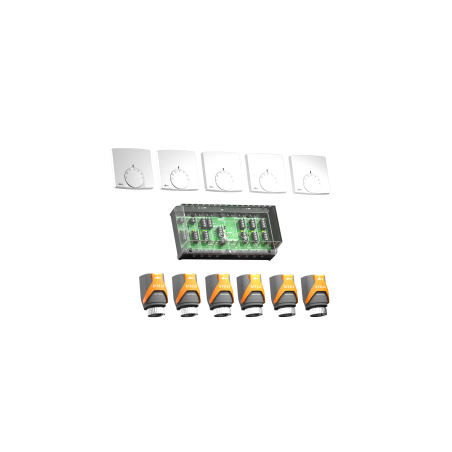

This set is the ideal system for ensuring an optimal room climate: the "Stella" actuator performs automatic, adaptive hydraulic control of underfloor heating. Sensors in the supply and return lines measure temperature differences, and an algorithm continuously calculates the required temperature spread and the corresponding valve position. The timelessly elegant room temperature controllers in an ultra-flat, surface-mounted housing (only 13.9 mm deep) offer high control accuracy and adapt to any environment. And thanks to the terminal block from alre, temperature controllers and electrothermal actuators in conjunction with hot water underfloor heating can be quickly, clearly, and conveniently connected in the circulation manifold. Stella can be used in conjunction with all common temperature controllers and terminal blocks (except for devices with a triac switching element). Contents: 6x ZBOOA-010.185 actuators 5x RTBSB-201.000 surface-mounted room thermostats 1x VOOPL-216.176 terminal block
