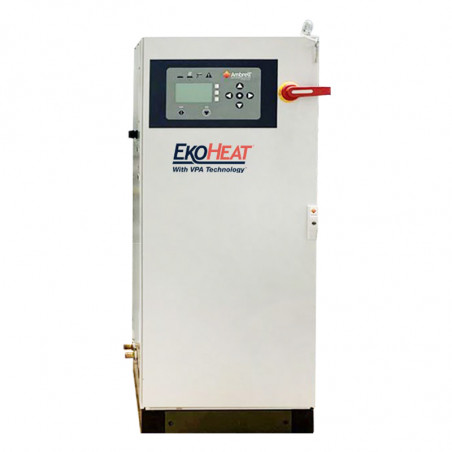

Induction heating generator EKOHEAT Compact 75/10
  • Induction heating generator EKOHEAT Compact 75/10

Photos are for informational purposes only. View product specification

Manufacturer: Ambrell

Induction heating generator EKOHEAT Compact 75/10

  • EKOHEAT Compact 75/100
  • Power supply 360-520 V, 3ph
  • Frequency 5 - 15 kHz
  • Input power 87 kVA
  • Output power 75 kW

Generator for induction heating EKOHEAT Compact 75/10

EKOHEAT induction heating systems for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Typical applications include heating parts that require deeper heat penetration, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles.

It is a specially made compact version of the standard solution that provides the same technical performance while reducing dimensions by 50%.

Datasheet:

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us

ASK FOR THE PRODUCT close
Message sent successfully.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Power supply 360-520 V, 3ph
  • Frequency 5 - 15 kHz
  • Input power 87 kVA
  • Output power 75 kW

Generator for induction heating EKOHEAT Compact 75/10

EKOHEAT induction heating systems for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Typical applications include heating parts that require deeper heat penetration, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles.

It is a specially made compact version of the standard solution that provides the same technical performance while reducing dimensions by 50%.

Datasheet:
