Manufacturer: KRADEX

Accessories for the ZP series hermetic enclosures

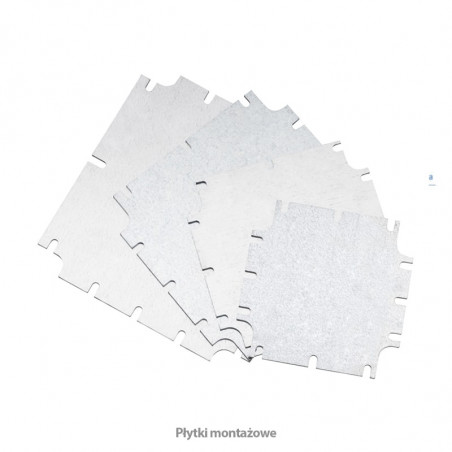

Mounting plates


The plates are made of 2 mm galvanized steel sheet. They allow you to mount various elements anywhere on the mounting plate. The plates are mounted to the posts in the housing with screws.

Product no. Height [mm] Width [mm] Lenght [mm] Material Applicable to
ZMB105.105 2 91 91 Galvanized steel ZP105.105.60
ZP105.105.75
ZMB120.120 2 106 106 Galvanized steel ZP120.120.60
ZMB135.135 2 121 121 Galvanized steel ZP135.135.60
ZMB150.100 1,5 138 138 Galvanized steel ZP150.100.45U
ZP150.100.60
ZP150.100.60U
ZP150.100.75
ZMB150.150 2 136 136 Galvanized steel ZP150.150.60
ZMB180.120 1,5 165 106 Galvanized steel ZP180.120.90
ZMB210.140 1,5 126 196 Galvanized steel ZP210.140.60
ZMB240.190 1,5 220 171 Galvanized steel ZP240.190.60



DIN Rail


Mounting posts ensure stable mounting of the rail. As a result, it is possible to mount them inside the ZP line enclosures, which require mounting on a DIN rail. The rail is dedicated like the mounting plate to the given housing size.

Product no. Height [mm] Width [mm] Lenght [mm] Material Applicable to
TZ35.76 7,5 35 90 Galvanized steel ZP105.105.XX
ZP150.100.XX
TZ35.93 7,5 35 108 Galvanized steel ZP120.120.XX
ZP180.120.XX
TZ35.106 7,5 35 122 Galvanized steel ZP135.135.XX
ZP210.140.XX
TZ35.114 7,5 35 135 Galvanized steel ZP150.150.XX
ZP150.100.XX
TZ35.146 7,5 35 163 Galvanized steel ZP180.120.XX
ZP240.190.XX
TZ35.179 7,5 35 196 Galvanized steel ZP210.140.XX
TZ35.201 7,5 35 218 Galvanized steel ZP240.190.XX



Mounting brackets


Mounting brackets ensure that the device is attached to the wall without opening cover. It is useful when there is a need to mount devices in adverse conditions or if the housing has a warranty seal.


Product no. Height [mm] Width [mm] Lenght [mm] Material Accessories Applicable to
ZWM10 8 20 40 ABS / PC Nut M4: 1.0 pcs
Bolt M4/8: 1.0 pcs
All hermetic types
ZWM20 8 24 49 ABS / PC Nut M4: 1.0 pcs
Bolt M4/8: 1.0 pcs
All ZP line
(except for ZP240.190.105)



Hinges


They are equipped with a lock which stops the lid in the open position. Hinges available in two versions: with locking or without.


Product no. Height [mm] Width [mm] Lenght [mm] Material Accessories Applicable to
ZHINGE10 14 23,7 47 ABS / PC Screw 3.1/8: 8.0 pcs.
Oring 4.00X1: 8.0 pcs.
ZP240.190.105
ZHINGE20 19,2 20 29 ABS / PC Screw 3.1/8: 8.0 pcs.
Oring 4.00X1: 8.0 pcs.
All ZP line
(z wyjątkiem ZP240.190.105)



Kits for mounting ZP lines on polesh



Product no. Rail lenght [mm] Applicable to Accessories
ZPM1 100 ZP105.105.60
ZP150.100.60
2x band with screw
4x Bolt M4x10
4x Nut M4
ZPM2 118 ZP120.120.60
ZP180.120.60
ZPM3 133 ZP135.135.60
ZP210.140.60
ZPM4 148 ZP150.100.60
ZP150.150.60
ZPM5 178 ZP180.120.60
ZP240.190.105
ZPM6 208 ZP210.140.60
ZPM7 234 ZP240.190.105



Gasket



Product no. Lenght [mm] Applicable to
Gasket 38 ZP105.105.60
Gasket 44 ZP120.120.60
Gasket 50 ZP135.135.60
Gasket 44 ZP150.100.45
Gasket 44 ZP150.100.60
Gasket 44 ZP150.100.75
Gasket 54 ZP150.150.60
Gasket 53 ZP180.120.90
Gasket 63,5 ZP210.140.60
Gasket 74 ZP240.190.105
