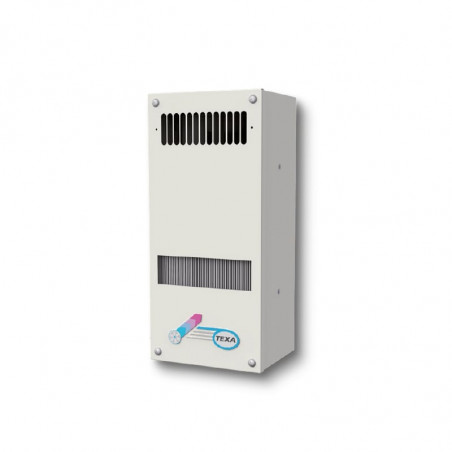

Air - air heat exchangers for door or cabinet side assembly
  • Air - air heat exchangers for door or cabinet side assembly

Photos are for informational purposes only. View product specification

Manufacturer: TEXA PAVARINI

Air - air heat exchangers for door or cabinet side assembly

Type

Cooling power
L35L35 *
[W]

Dimensions
H. x W. x D.
[mm]
Power supply *
[V/Hz/A]
Noise level
[dB(A)]
Weight
[kg]
MIX14BX0A 14 30.3x100x165 230/50/60/0,5 7 59
MIX14CX0A 14 363x188x165 115/50/60/0 96 60 7
MIX36BXOA 36 771x316x93 230/50/60/0,64 67 10
MIX36CXOA 36 771x316x93 115/50/60/1 12 67 10
MIX80BXOA 80 1260x317x108 230/50/60/1,06 75 17
MIX80CXOA 80 1260x317x108 115/50/60/2,10 75 17



Choosing diagram MIX14

P - Cooling power [W]
Ta - Cooling water temperature [°C]
Ti - Cabinet temperature [°C]
Dimensions for MIX14


Choosing diagram MIX36

P - Cooling power [W]
Ta - Cooling water temperature [°C]
Ti - Cabinet temperature [°C]
Dimensions for MIX36


Choosing diagram MIX50

P - Cooling power [W]
Ta - Cooling water temperature [°C]
Ti - Cabinet temperature [°C]
Dimensions for MIX50
