Manufacturer: Ebmpapst

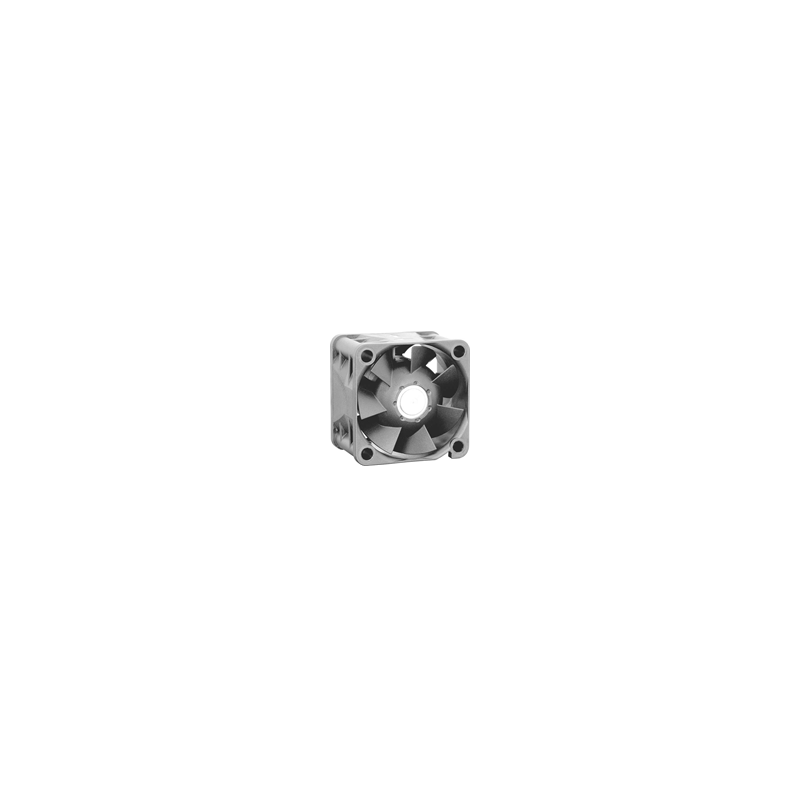

422 JH DC Axial Fan 12V 6.9W

  • 422JH
  • Air flow direction Exhaust through struts
  • Dimensions 40 x 40 x 28 mm
  • Housing material PBT material reinforced with glass fiber
  • Input power 6,9
  • Nominal voltage 12
  • Speed 17250
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 38
  • Fan type DC axial
  • Voltage range 8 ... 13,8
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Weight 0,045 kg
