Manufacturer: Ebmpapst

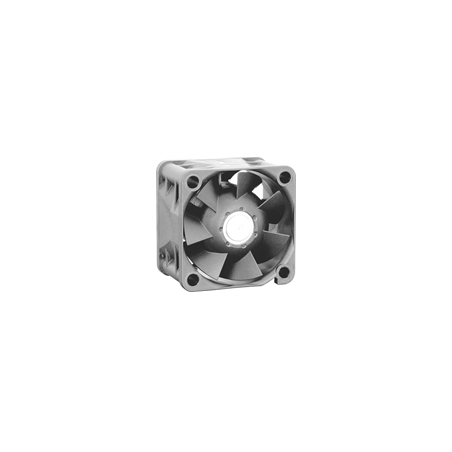

424 JM DC Axial Fan 24V 2.7W

  • 424JM
  • Air flow direction Exhaust through struts
  • Dimensions 40 x 40 x 28 mm
  • Housing material PBT material reinforced with glass fiber
  • Input power 2,7
  • Nominal voltage 24
  • Speed 11400
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 24
  • Fan type DC axial
  • Voltage range 16 ... 28
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Weight 0,045 kg
