Manufacturer: Ebmpapst

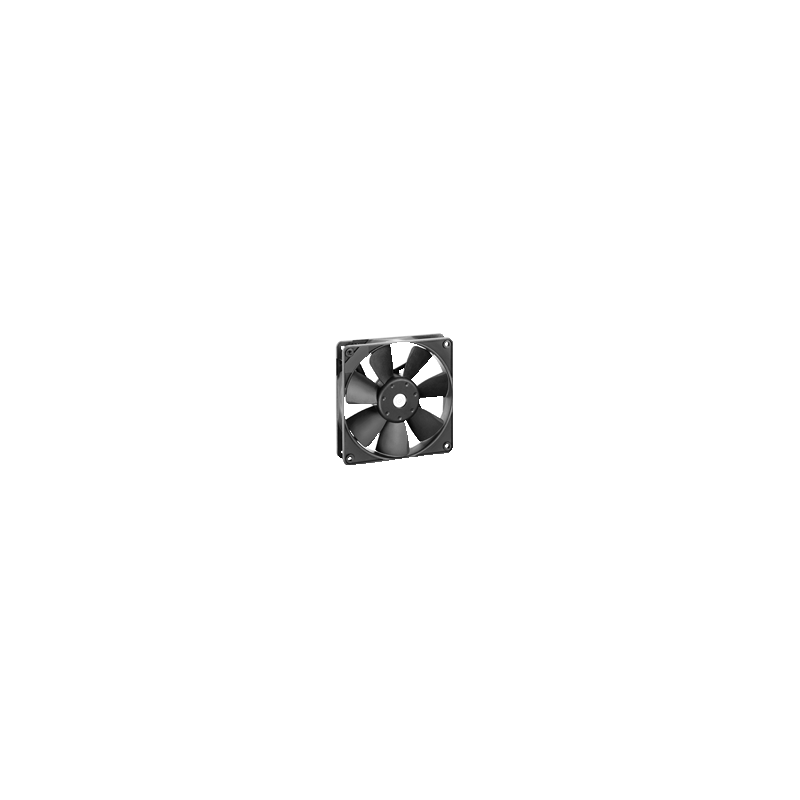

4414 FL DC Axial Fan 24V 1.2W

  • 4414FL
  • Air flow direction Exhaust through struts
  • Dimensions 119 x 119 x 25 mm
  • Housing material PBT material reinforced with glass fiber
  • Input power 1,2
  • Nominal voltage 24
  • Speed 1600
  • Min. ambient temperature -20
  • Max. ambient temperature 75
  • Air flow 94
  • Fan type DC axial compact
  • Voltage range 18 ... 28
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Locked-rotor protection Reverse polarity and locked rotor protection.
  • Weight 0,175 kg
