Manufacturer: Ebmpapst

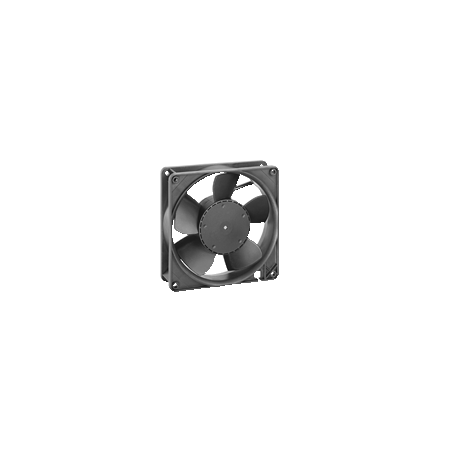

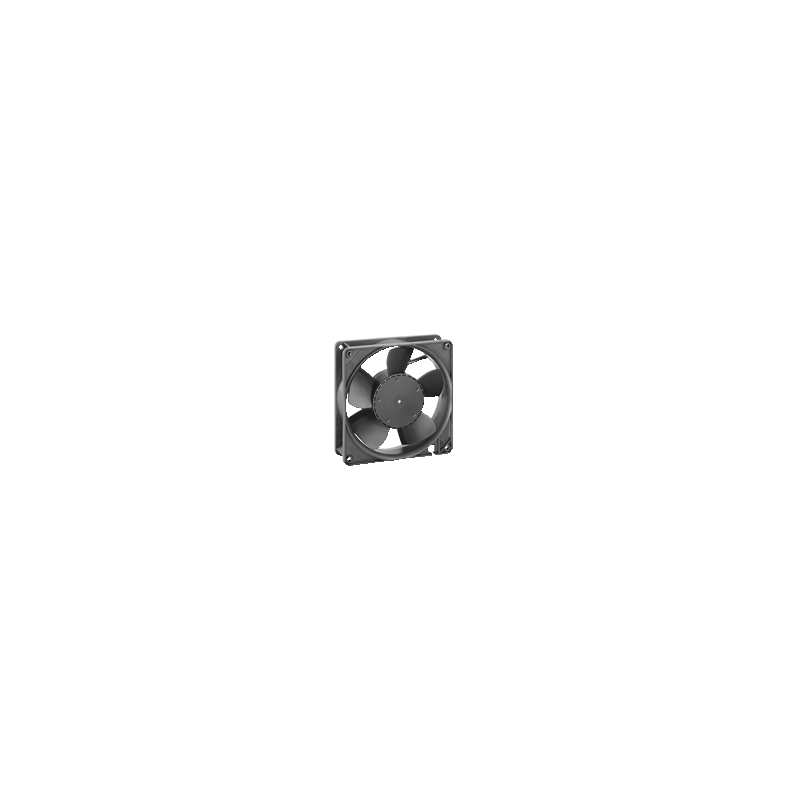

5218 NH DC Axial Fan 48V 9.6W

  • 5218NH
  • Air flow direction Exhaust through struts
  • Dimensions 127 x 127 x 38 mm
  • Housing material PBT material reinforced with glass fiber
  • Input power 9,6
  • Nominal voltage 48
  • Speed 3650
  • Min. ambient temperature -20
  • Max. ambient temperature 55
  • Air flow 252
  • Fan type DC axial compact
  • Voltage range 36 ... 56
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Locked-rotor protection Electronic protection against reverse polarity and locked rotor.
  • Weight 0,31 kg
