Manufacturer: Ebmpapst

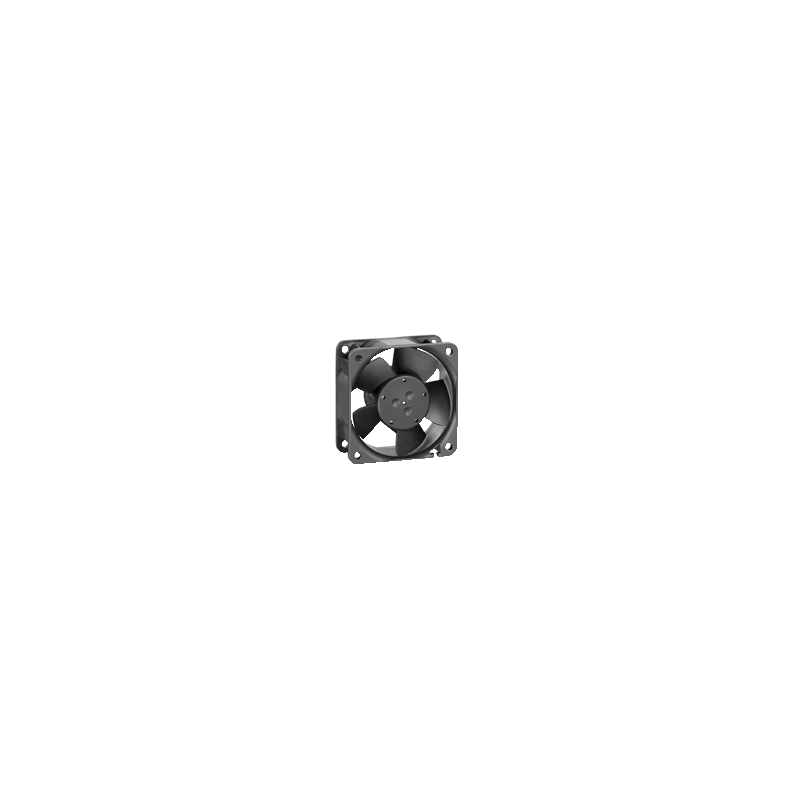

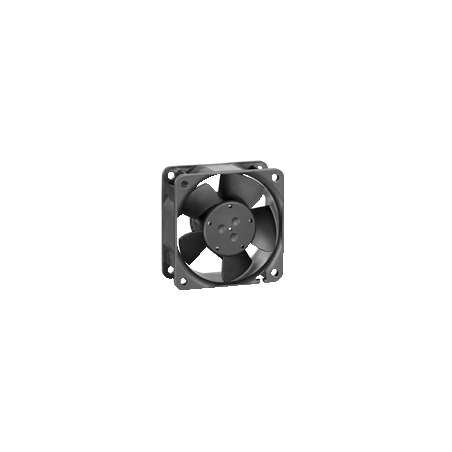

612 NHH-118 DC Axial Fan 12V 2.9W

  • 612NHH118
  • Air flow direction Exhaust through struts
  • Dimensions 60 x 60 x 25 mm
  • Housing material PBT material reinforced with glass fiber
  • Input power 2,9
  • Nominal voltage 12
  • Speed 6800
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 56
  • Fan type DC axial compact
  • Voltage range 8 ... 15
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Locked-rotor protection Electronic protection against reverse polarity and locked rotor.
  • Weight 0,066 kg
