Manufacturer: Ebmpapst

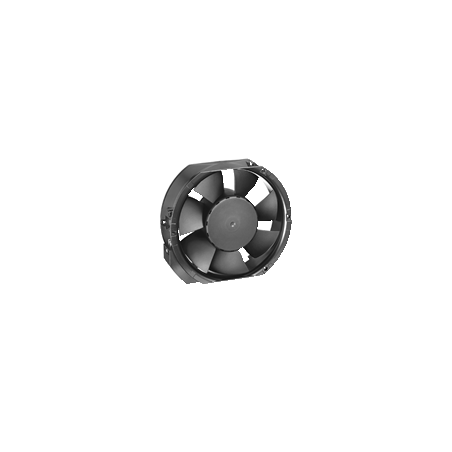

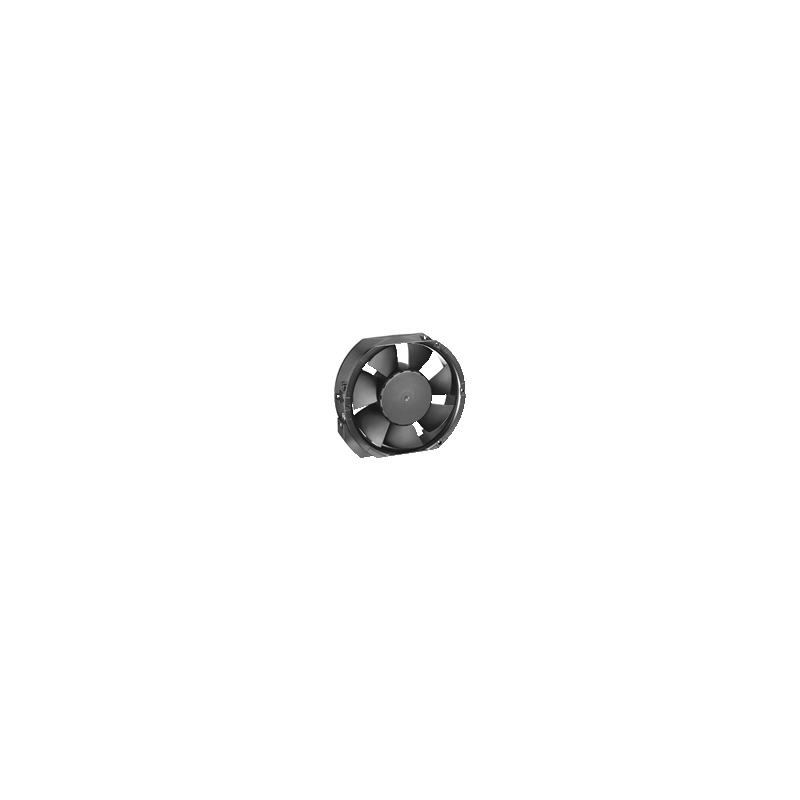

6448 T DC Axial Fan 48V 17W

  • 6448T
  • Air flow direction Exhaust through struts
  • Dimensions 172 x 150 x 51 mm
  • Housing material Aluminum. Housing with grounding eyelet for M4 x 8 (Torx) screw. 48V version, screws included.
  • Input power 17
  • Nominal voltage 48
  • Speed 3400
  • Min. ambient temperature -10
  • Max. ambient temperature 72
  • Air flow 410
  • Fan type DC axial compact
  • Voltage range 28 ... 60
  • Rotor material Glass fiber reinforced PA material
  • Type of voltage DC
  • Locked-rotor protection Electronic locked rotor protection, with electronic motor current limitation during starting and locked rotor conditions.
  • Weight 0,76 kg
