Manufacturer: Ebmpapst

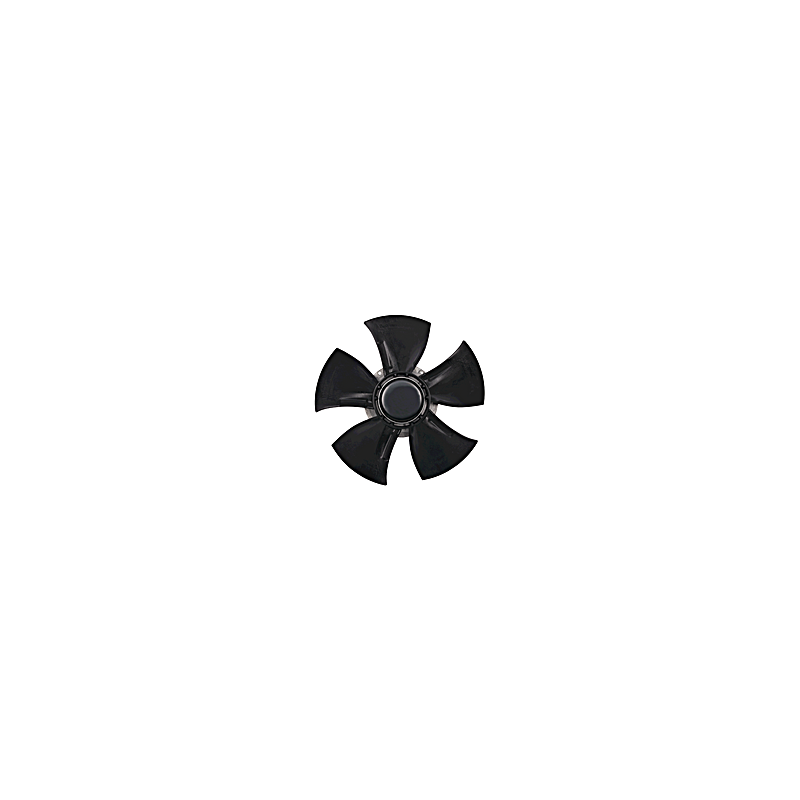

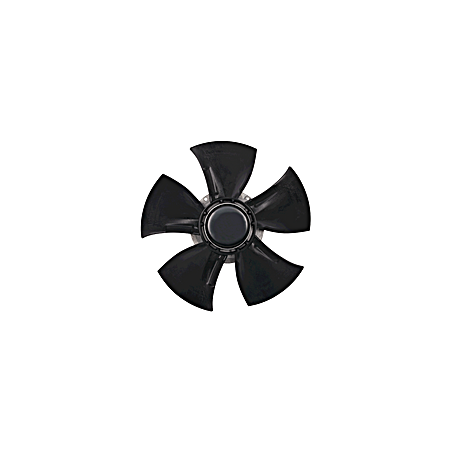

A3G450-BL12-N1 EC axial fan 400V 500W

  • A3G450BL12N1
  • Air flow direction A
  • Protection rating IP55
  • Frequency 50/60
  • Input power 500
  • Phase 3~
  • Nominal voltage 400
  • Speed 1500
  • Current draw 0,83
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 450 mm
  • Fan type EC axial
  • Voltage range 380 ... 480
  • Rotor material PA plastic, black painted sheet metal
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing / (sealed)
  • Maximum back pressure 150
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 5,3 kg
  • Compliance with standards EN 15085-1, CPC3; EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
