Manufacturer: Ebmpapst

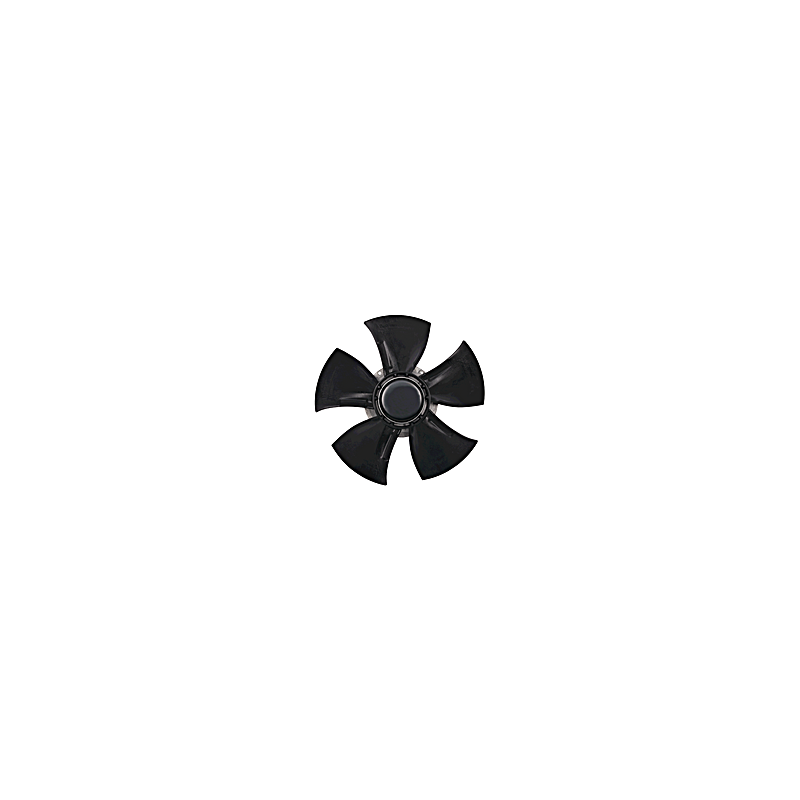

A3G450-BL17-P3 EC axial fan 110V 530W

  • A3G450BL17P3
  • Air flow direction A
  • Protection rating IP55
  • Frequency DC
  • Input power 530
  • Nominal voltage 110
  • Speed 1500
  • Current draw 4,8
  • Max. ambient temperature 60
  • Certificate EAC
  • Size 450 mm
  • Fan type EC axial
  • Voltage range 77 ... 138
  • Rotor material PA plastic, black painted sheet metal
  • Type of voltage DC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 84
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H3
  • Motor bearing Ball bearing / (sealed)
  • Maximum back pressure 160
  • Rotor surface Painted black
  • Electronics housing material Die-cast aluminum, painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 5 kg
  • Compliance with standards EN 15085-1, CPC3; EN 45545-2, HL3; EN 50155; EN 61373, Cat. 1B
