Manufacturer: Ebmpapst

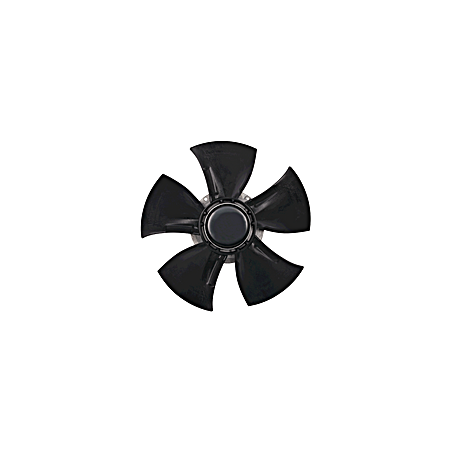

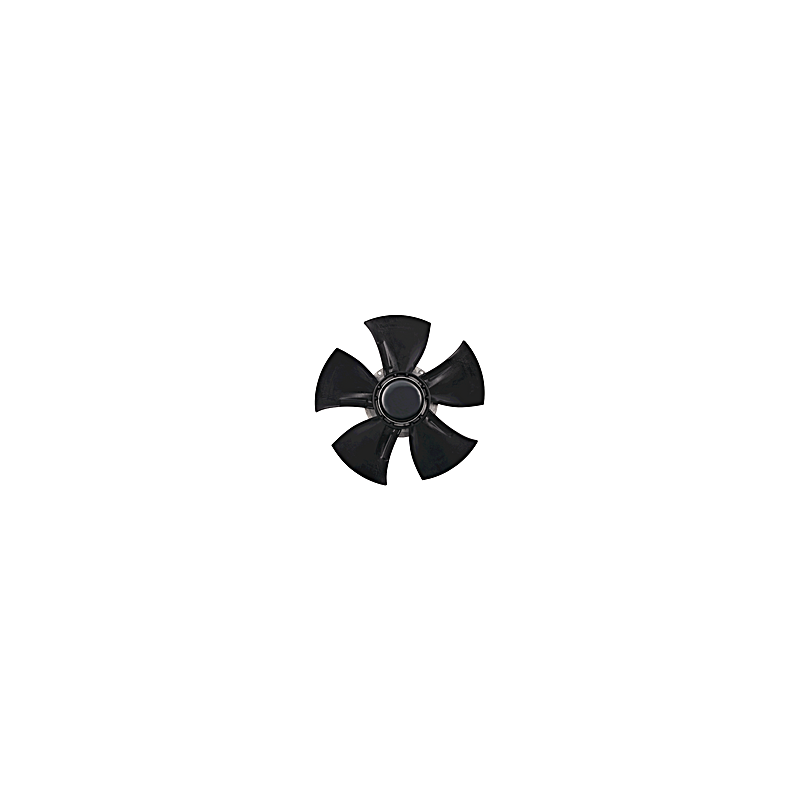

A4E500-AM03-35 AC axial fan 230V 680W

  • A4E500AM0335
  • Air flow direction A
  • Protection rating IP54
  • Frequency 50
  • Input power 680
  • Phase 1~
  • Nominal voltage 230
  • Speed 1300
  • Current draw 3
  • Min. ambient temperature -40
  • Motor capacitor 12 µF
  • Certificate CSA C22.2 No. 100 / EAC / VDE / UL 1004-1
  • Size 500 mm
  • Fan type AC axial
  • Rotor material Pressed, painted steel sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Automatic reset thermal cutout, lead-out, with basic insulation
  • Motor size 110
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2+A
  • Motor bearing Ball bearing
  • Maximum back pressure 150
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE
  • Weight 9,72 kg
  • Compliance with standards EN 61800-5-1; EN 60034-1 (2010) / CE
