Manufacturer: Ebmpapst

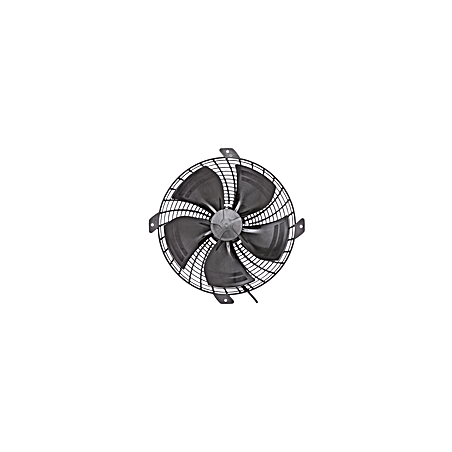

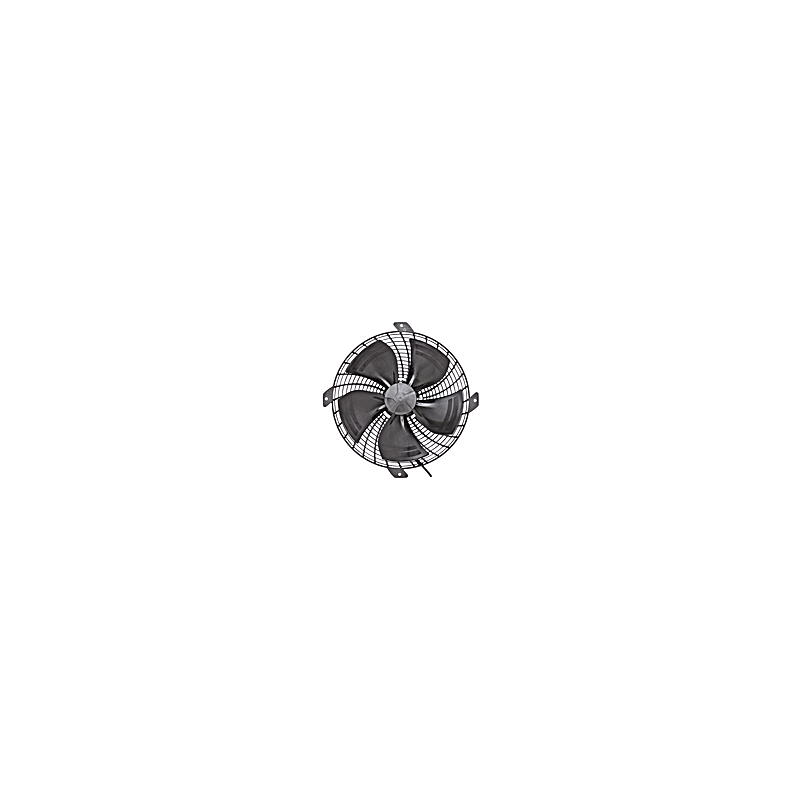

S1G300-HP01-11 EC axial fan 230V 85W

  • S1G300HP0111
  • Air flow direction A
  • Protection rating IP54
  • Frequency 50/60
  • Input power 85
  • Phase 1~
  • Nominal voltage 230
  • Speed 1600
  • Current draw 0,7
  • Max. ambient temperature 40
  • Certificate EAC
  • Size 300 mm
  • Fan type EC axial with protective grille
  • Voltage range 200 ... 240
  • Rotor material Pressed semi-finished product made of steel sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 55
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing with low-temperature grease
  • Maximum back pressure 50
  • Rotor surface Thick-layer passivated
  • Max. permitted ambient temp. (transport/storage) 70
  • Min. ambient temp. (transport/storage) -40
  • Weight 2,54 kg
  • Compliance with standards EN 60335-1 / CE
