Manufacturer: Ebmpapst

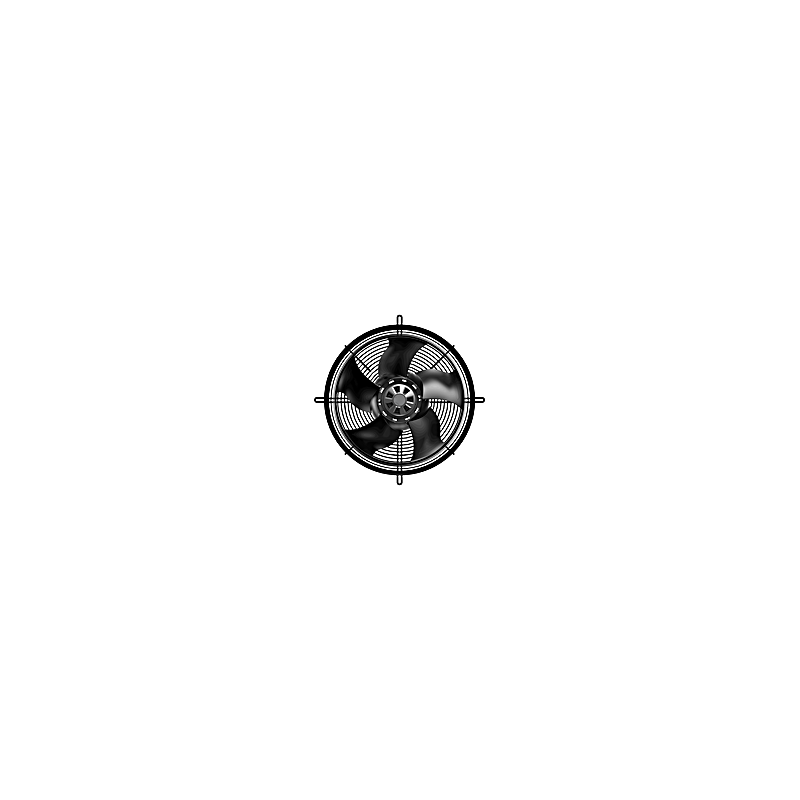

S3G300-ZC05-01 EC axial fan 230V 80W

  • S3G300ZC0501
  • Air flow direction V
  • Protection rating IP54
  • Frequency 50/60
  • Input power 80
  • Phase 1~
  • Nominal voltage 230
  • Speed 1400
  • Current draw 0,7
  • Max. ambient temperature 60
  • Certificate EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / UL 1004-7 + 60730-1
  • Size 300 mm
  • Fan type EC axial with protective grille
  • Voltage range 200 ... 240
  • Rotor material PP plastic, galvanized sheet metal
  • Type of voltage AC
  • Motor protection Electronic engine protection
  • Motor size 55
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing
  • Maximum back pressure 100
  • Rotor surface Thick-layer passivated
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Weight 3,32 kg
  • Compliance with standards EN 60034-1; EN 60204-1; EN 60335-1 / CE
