Manufacturer: Ebmpapst

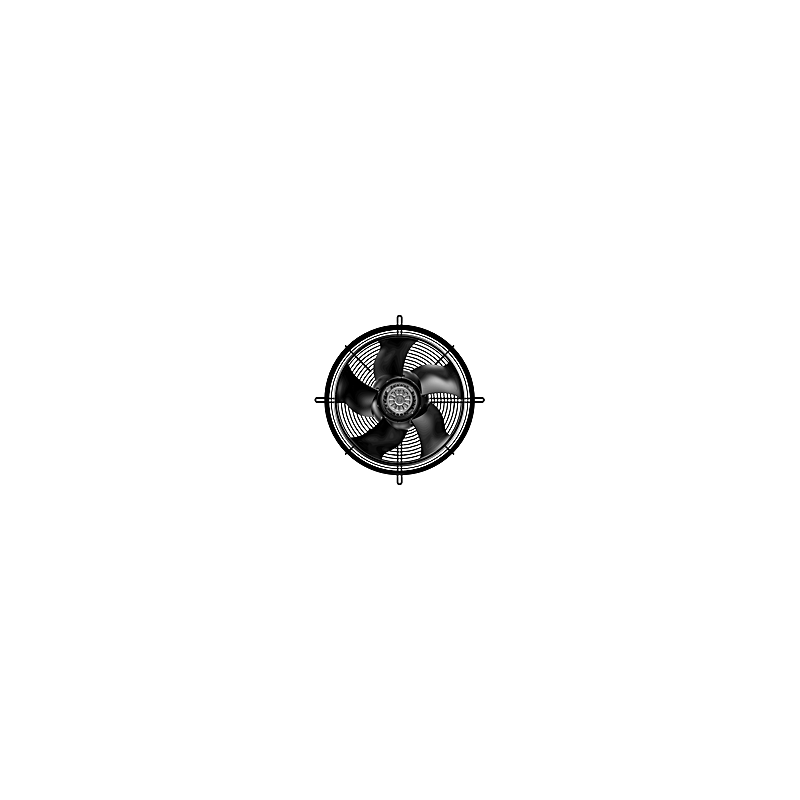

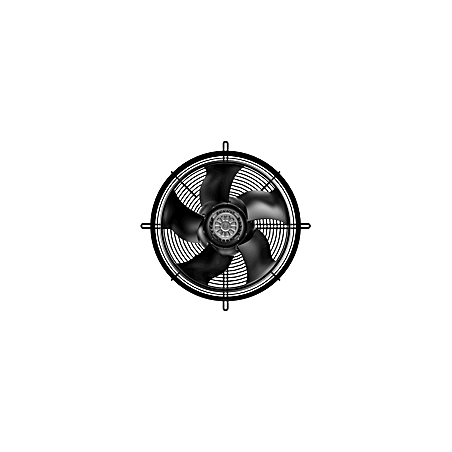

S4E450-ZK04-01 AC axial fan 230V 550W

  • S4E450ZK0401
  • Air flow direction V
  • Protection rating IP54
  • Frequency 50
  • Input power 550
  • Phase 1~
  • Nominal voltage 230
  • Speed 1380
  • Current draw 2,6
  • Motor capacitor 14 µF
  • Certificate UL 1004-1 / EAC / CSA C22.2 No. 100
  • Size 450 mm
  • Fan type AC axial with protective grille
  • Rotor material PP plastic, galvanized sheet metal
  • Type of voltage AC
  • Motor protection Automatic reset thermal cutout, lead-out, with basic insulation
  • Motor size 94
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H2
  • Motor bearing Ball bearing
  • Maximum back pressure 190
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE
  • Weight 11,68 kg
  • Compliance with standards EN 60034-1 / CE
