Manufacturer: Ebmpapst

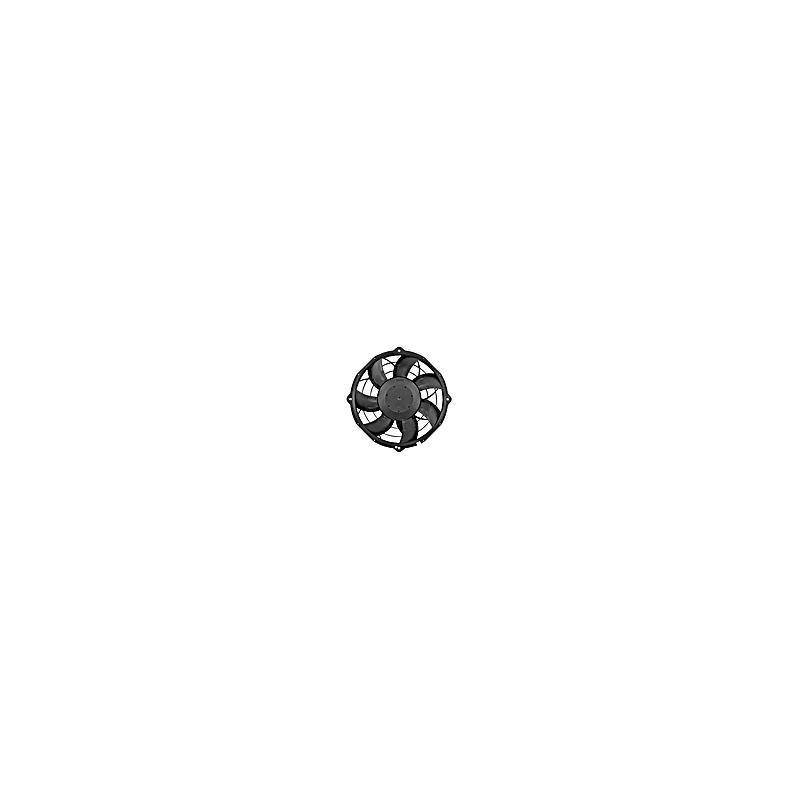

W4E300-TS72-30 AC axial fan 230V 72W

  • W4E300TS7230
  • Air flow direction V
  • Protection rating IP44 / depending on mounting and position
  • Frequency 50
  • Input power 72
  • Phase 1~
  • Nominal voltage 230
  • Speed 1320
  • Current draw 0,32
  • Min. ambient temperature -40
  • Motor capacitor 2 µF
  • Certificate CCC
  • Size 300 mm
  • Fan type AC axial with wall ring
  • Rotor material Pressed semi-finished product made of steel sheet, sprayed with PP plastic
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 68
  • Insulation class B
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing with low-temperature grease
  • Maximum back pressure 45
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 80
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE
  • Fan housing material PP plastic
  • Weight 3,1 kg
  • Compliance with standards EN 60335-1 / CE
