Manufacturer: Ebmpapst

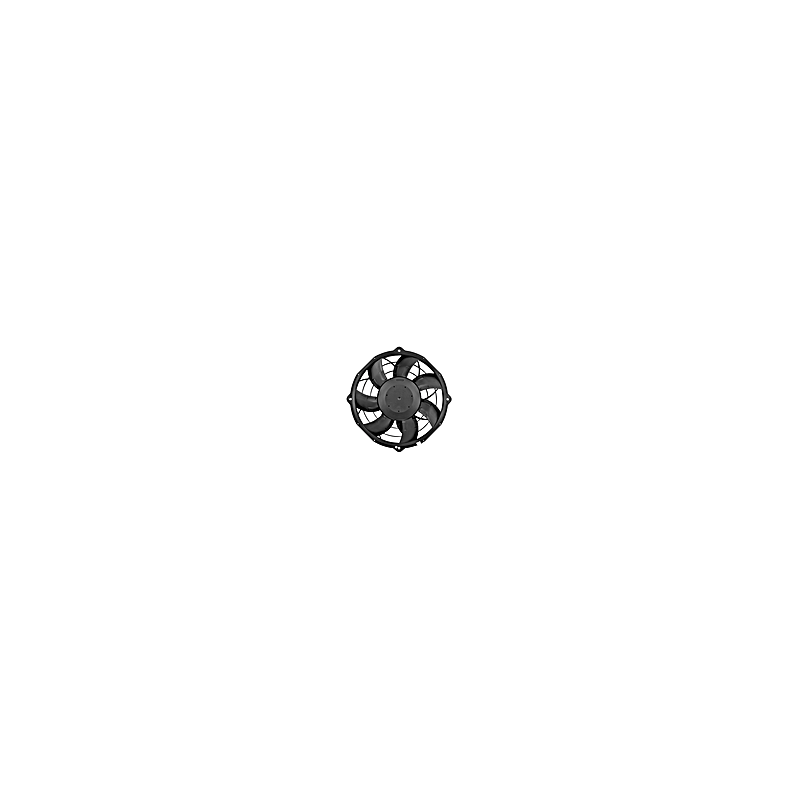

W4E450-JP01-30 AC axial fan 230V 300W

  • W4E450JP0130
  • Air flow direction V
  • Protection rating IP44 / depending on mounting and position
  • Frequency 50
  • Input power 300
  • Phase 1~
  • Nominal voltage 230
  • Speed 1340
  • Current draw 1,32
  • Min. ambient temperature -40
  • Motor capacitor 8 µF
  • Certificate CCC / EAC
  • Size 450 mm
  • Fan type AC axial with wall ring
  • Rotor material Black painted steel sheet
  • Type of voltage AC
  • Motor protection Thermal Overload Protection (TOP) connected internally
  • Motor size 74
  • Insulation class F
  • Protection class against moisture (F) / environment (H) H1
  • Motor bearing Ball bearing with low-temperature grease
  • Maximum back pressure 70
  • Rotor surface Painted black
  • Max. permitted ambient temp. (transport/storage) 70
  • Min. ambient temp. (transport/storage) -40
  • Valid for approval / standard CE
  • Fan housing material PP plastic
  • Weight 9,1 kg
  • Compliance with standards EN 60335-1 / CE
