Manufacturer: FANDIS

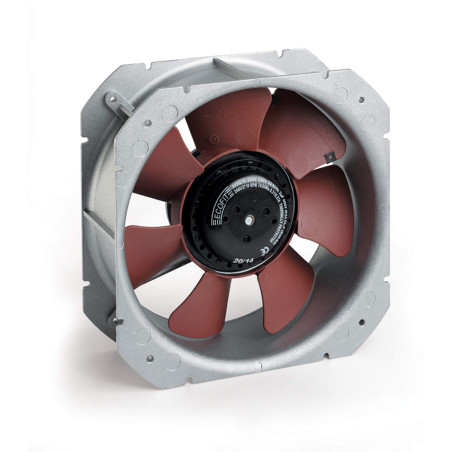

C22S40HKBD00 AC Axial Fan 400V 174W

  • C22S40HKBD00
  • Air flow direction Exhaust through brackets
  • Dimensions 218 x 218 x 83 mm
  • Rated voltage 400
  • Housing material Odlew aluminium
  • Protection rating IP20
  • Frequency 50
  • Input power 174
  • Speed 2770
  • Current draw 0,28
  • Air flow 1020
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 265
  • Noise Level 61
  • Fan type AC axial
  • Voltage range 360-440
  • Type of voltage AC
  • Insulation class F
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Screwless terminal block
  • Storage temperature -20÷70 °C
  • Working temperature -20÷70 °C
