Manufacturer: FANDIS

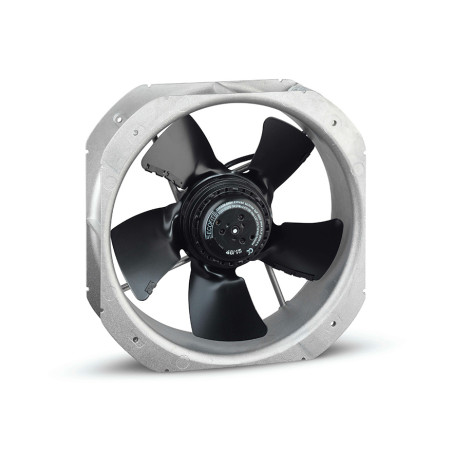

C25S40HKBE00 AC Axial Fan 400V 117W

  • C25S40HKBE00
  • Air flow direction Exhaust through brackets
  • Dimensions 280 x 280 x 80 mm
  • Rated voltage 400
  • Housing material Odlew aluminium
  • Protection rating IP20
  • Frequency 50
  • Input power 86
  • Speed 2635
  • Current draw 0,19
  • Air flow 1540
  • Certificate CE; UKCA
  • Mounting method screws
  • Static Pressure 280
  • Noise Level 69
  • Fan type AC axial
  • Voltage range 360-440
  • Type of voltage AC
  • Insulation class F
  • Motor bearing Ball bearing
  • Protection class I
  • Electrical hookup Screwless terminal block
  • Storage temperature -20÷70 °C
  • Working temperature -20÷70 °C
