Buffer power supplies with ultra-capacitors

Buffer power supplies with ultra-capacitors

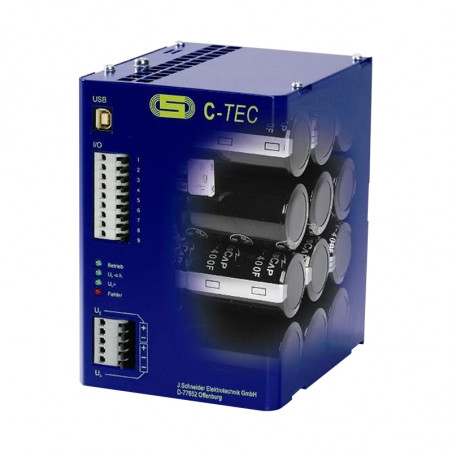

The DC UPS of the C-TEC series is equipped with integrated ultracapacitors for accumulating energy. During normal operation this capacitor is charged by an internal charger which is supplied by an external, regulated power supply. If the supply is interrupted, energy of the ultracapacitors is released in a regulated process. The load is supplied by the buffermodul until the capacitors are discharged. The buffering time depends on the state of charge of the capacitor and discharging current.

The DC-UPS shows the following features:
  • Maintenance-free due to durable ultra capacitors
  • Reduces wiring time due to intergrated energy storage
  • Microcontroller based charging and discharging of the ultracapacitors
  • Input voltage-signal via potential-free contact and LED
  • Short overload possible
  • Vibration secured wiring via spring loaded plugs
  • Wide working temperature range -40°C till 60°C





Supplies with AC input::

AC-C-TEC

2403-1*

1203-1*

2410-10

2420-8

Input voltage 115-230V AC 115-230V AC 100-240V AC 3x400-500V AC
Energy 1000Ws 1000Ws 10000Ws 8000Ws
Output voltage 23,5V 11,5V 23,5V 23,0V
Output current 3A 3A 10A 20A
Current limitation 1,05…1,2In
Efficiency 90%
Input connections 2,5mm2
Output connections 2,5mm2 4mm2
Potentialfree relay 1mm2
USB interface - - + +
Protection IP20
Weight 0,9kg 0,86kg 3,0kg 3,5kg
Temperature -40°C…+60°C -25°C…+60°C
Dimensions 153x72x130mm 153x72x130mm 165x184x145mm 192x170x198mm
*available also 400V oraz 500Ws versions

Supplies with DC input:

C-TEC

2403-05

2403-1

1203-1

2405-5/
1205-5

Input voltage ±20% 24V DC 24V DC 12V DC 24V DC/
12V DC
Energy 500Ws 1000Ws 1000Ws 5000Ws
Ouput voltage 23V 23V 11,5V 23V
Output curent 3A 3A 3A 3A
Current limitation 1,05…1,2In
Efficiency 90%
Input connections 1mm2 2,5mm2
Output connections 1mm2 2,5mm2
Potentialfree relayy 1mm2
USB interface - - - +
Protection IP20
Weight 0,5kg 0,58kg 0,55kg 1,7kg
Temperature -40°C…+60°C
Dimensions 93x60x116mm 93x60x116mm 93x60x116mm 165x114x145mm

C-TEC

2408-20/
1208-20

2410-1/
1210-1

2410-10/
1210-10

2420-8

Input voltage ±20% 24V DC/
12V DC
24V DC/
12V DC
24V DC/
12V DC
24V DC
Energy 20000Ws 1000Ws 10000Ws 8000Ws
Outpur voltage 23,5V/
11,7V
23,5V/
11,7V
23,5V/
11,7V
23,2V
Outpur current 5A 8A 10A 20A
Current limitation 1,05…1,2In
Efficiency 90%
Input connections 2,5mm2 4mm2
Outpur connections 2,5mm2 4mm2
Potentialfree relay 1mm2 1,5mm2
USB interface + + + +
Protection IP20
Weight 3,5kg 1,2kg 2,1kg 2,2kg
Temperature -40°C…+60°C
Dimensions 165x184x145mm 165x70x138mm 165x114x145mm 192x84x192mm

Buffer Times in seconds:

C-TEC

1203-1

2403-1

+CEM1

+CEM2

2405-5

2408-20

2410-1

2410-10

2420-8

+CEM8

+CEM16

AC C-TEC

1203-1

2403-1

+CEM1

+CEM2

- - -

2410-10

2420-8

+CEM8

+CEM16

0,5A 150 75 150 225 375 1500 75 750 600 1200 1800
1A 75 37,5 75 112,5 187,5 750 37,5 375 300 600 900
1,5A 50 25 50 75 125 500 25 250 200 400 600
2A 37,5 19 38 57 94 375 18,75 187,5 150 300 450
3A 25 12,5 25 37,5 62,5 250 12,5 125 100 200 300
45A - - - - 37,5 150 7,5 75 60 120 180
8A - - - - - 94 4,5 45 37,5 75 112,5
10A - - - - - - 3,75 37,5 30 60 90
15A - - - - - - - - 20 40 60
20A - - - - - - - - 15 30 45
