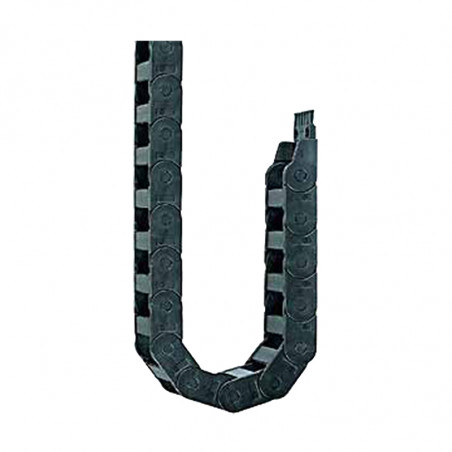

Cable guides 2400 2500 series
Cable guides 2400 2500 series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Igus

Cable guides 2400 2500 series

Features:
  • Double stop dog for long unsupported length
  • Opening system for rapid opening, either from the right or the left
  • Cross bars with high locking range
  • Lateral glide surfaces for side-mounted operation
  • Tried-and-tested mounting bracket
  • Integrated strain relief possible
  • Series 2400 and 2450 snap-open along inner radius
  • Series 2450 half E-Tube snap-open along inner radius, either from the right or the left
  • Fully enclosed E-Tube Series 2480 snap-open along inner radius
  • Modular interior separation
  • Easy assembly by optimized pin
  • Also available as ESD version

E2/000 | Series 2400 E2/000 | Series 2400
Series 2400 Series 2500

Names Width Bi
[mm]		 Width Bi
[mm]		 Bending radius R
[mm]		 Snap-open along radius
2400.02.055.0 25 41 55 inner
2400.02.075.0 25 41 75 inner
2400.02.100.0 25 41 100 inner
2400.02.125.0 25 41 125 inner
2400.02.150.0 25 41 150 inner
2400.02.175.0 25 41 175 inner
2400.02.200.0 25 41 200 inner
2400.02.225.0 25 41 225 inner
2400.02.250.0 25 41 250 inner
2400.03.055.0 38 54 55 inner
2400.03.075.0 38 54 75 inner
2400.03.100.0 38 54 100 inner
2400.03.125.0 38 54 125 inner
2400.03.150.0 38 54 150 inner
2400.03.175.0 38 54 175 inner
2400.03.200.0 38 54 200 inner
2400.03.225.0 38 54 225 inner
2400.03.250.0 38 54 250 inner
2400.05.055.0 57 73 55 inner
2400.05.075.0 57 73 75 inner
2400.05.100.0 57 73 100 inner
2400.05.125.0 57 73 125 inner
2400.05.150.0 57 73 150 inner
2400.05.175.0 57 73 175 inner
2400.05.200.0 57 73 200 inner
2400.05.225.0 57 73 225 inner
2400.05.250.0 57 73 250 inner
2400.07.055.0 77 93 55 inner
2400.07.075.0 77 93 75 inner
2400.07.100.0 77 93 100 inner
2400.07.125.0 77 93 125 inner
2400.07.150.0 77 93 150 inner
2400.07.175.0 77 93 175 inner
2400.07.200.0 77 93 200 inner
2400.07.225.0 77 93 225 inner
2400.07.250.0 77 93 250 inner
2400.09.055.0 89 105 55 inner
2400.09.075.0 89 105 75 inner
2400.09.100.0 89 105 100 inner
2400.09.125.0 89 105 125 inner
2400.09.150.0 89 105 150 inner
2400.09.175.0 89 105 175 inner
2400.09.200.0 89 105 200 inner
2400.09.225.0 89 105 225 inner
2400.09.250.0 89 105 250 inner
2400.10.055.0 103 119 55 inner
2400.10.075.0 103 119 75 inner
2400.10.100.0 103 119 100 inner
2400.10.125.0 103 119 125 inner
2400.10.150.0 103 119 150 inner
2400.10.175.0 103 119 175 inner
2400.10.200.0 103 119 200 inner
2400.10.225.0 103 119 225 inner
2400.10.250.0 103 119 250 inner
2400.12.055.0 125 141 55 inner
2400.12.075.0 125 141 75 inner
2400.12.100.0 125 141 100 inner
2400.12.125.0 125 141 125 inner
2400.12.150.0 125 141 150 inner
2400.12.175.0 125 141 175 inner
2400.12.200.0 125 141 200 inner
2400.12.225.0 125 141 225 inner
2400.12.250.0 125 141 250 inner
2500.02.055.0 25 41 55 outer
2500.02.075.0 25 41 75 outer
2500.02.100.0 25 41 100 outer
2500.02.125.0 25 41 125 outer
2500.02.150.0 25 41 150 outer
2500.02.175.0 25 41 175 outer
2500.02.200.0 25 41 200 outer
2500.02.225.0 25 41 225 outer
2500.02.250.0 25 41 250 outer
2500.03.055.0 38 54 55 outer
2500.03.075.0 38 54 75 outer
2500.03.100.0 38 54 100 outer
2500.03.125.0 38 54 125 outer
2500.03.150.0 38 54 150 outer
2500.03.175.0 38 54 175 outer
2500.03.200.0 38 54 200 outer
2500.03.225.0 38 54 225 outer
2500.03.250.0 38 54 250 outer
2500.05.055.0 57 73 55 outer
2500.05.075.0 57 73 75 outer
2500.05.100.0 57 73 100 outer
2500.05.125.0 57 73 125 outer
2500.05.150.0 57 73 150 outer
2500.05.175.0 57 73 175 outer
2500.05.200.0 57 73 200 outer
2500.05.225.0 57 73 225 outer
2500.05.250.0 57 73 250 outer
2500.07.055.0 77 93 55 outer
2500.07.075.0 77 93 75 outer
2500.07.100.0 77 93 100 outer
2500.07.125.0 77 93 125 outer
2500.07.150.0 77 93 150 outer
2500.07.175.0 77 93 175 outer
2500.07.200.0 77 93 200 outer
2500.07.225.0 77 93 225 outer
2500.07.250.0 77 93 250 outer
2500.09.055.0 89 105 55 outer
2500.09.075.0 89 105 75 outer
2500.09.100.0 89 105 100 outer
2500.09.125.0 89 105 125 outer
2500.09.150.0 89 105 150 outer
2500.09.175.0 89 105 175 outer
2500.09.200.0 89 105 200 outer
2500.09.225.0 89 105 225 outer
2500.09.250.0 89 105 250 outer
2500.10.055.0 103 119 55 outer
2500.10.075.0 103 119 75 outer
2500.10.100.0 103 119 100 outer
2500.10.125.0 103 119 125 outer
2500.10.150.0 103 119 150 outer
2500.10.175.0 103 119 175 outer
2500.10.200.0 103 119 200 outer
2500.10.225.0 103 119 225 outer
2500.10.250.0 103 119 250 outer
2500.12.055.0 125 141 55 outer
2500.12.075.0 125 141 75 outer
2500.12.100.0 125 141 100 outer
2500.12.125.0 125 141 125 outer
2500.12.150.0 125 141 150 outer
2500.12.175.0 125 141 175 outer
2500.12.200.0 125 141 200 outer
2500.12.225.0 125 141 225 outer
2500.12.250.0 125 141 250 outer

Accessories
2...3PZ(B)+ 2...4PZ(B)+ Moving end with bore (outer link)
2...3PZ(B)+
prowadnik kablowy 2..3PZ(B)+ prowadniki kablowe 2...3PZ(B)+
2...4PZ(B)+
Fixed end with pin (inner link)



Series Part No. full set with tiewrap plate Part No. with tiewrap plate + 10 cable tiewraps Part No. full set without tiewrap plate Dim. A [mm]
[mm]
2400.02. 2020.34 PZB+ 2020.34 PZBK1+ 2020.34 PZ+ 12
2400.03. 2030.34 PZB+ 2030.34 PZBK1+ 2030.34 PZ+ 25
2400.05. 2050.34 PZB+ 2050.34 PZBK1+ 2050.34 PZ+ 44
2400.07. 2070.34 PZB+ 2070.34 PZBK1+ 2070.34 PZ+ 64
2400.09. 2090.34 PZB+ 2090.34 PZBK1+ 2090.34 PZ+ 77
2400.10. 2100.34 PZB+ 2100.34 PZBK1+ 2100.34 PZ+ 90
2400.12 2125.34 PZB+ 2125.34 PZBK1+ 2125.34 PZ+ 112
2500.02. 2020.34 PZB+ 2020.34 PZBK1+ 2020.34 PZ+ 12
2500.03. 2030.34 PZB+ 2030.34 PZBK1+ 2030.34 PZ+ 25
2500.05. 2050.34 PZB+ 2050.34 PZBK1+ 2050.34 PZ+ 44
2500.07. 2070.34 PZB+ 2070.34 PZBK1+ 2070.34 PZ+ 64
2500.09. 2090.34 PZB+ 2090.34 PZBK1+ 2090.34 PZ+ 77
2500.10. 2100.34 PZB+ 2100.34 PZBK1+ 2100.34 PZ+ 90
2500.12 2125.34 PZB+ 2125.34 PZBK1+ 2125.34 PZ+ 112
