Manufacturer: DetasUltra

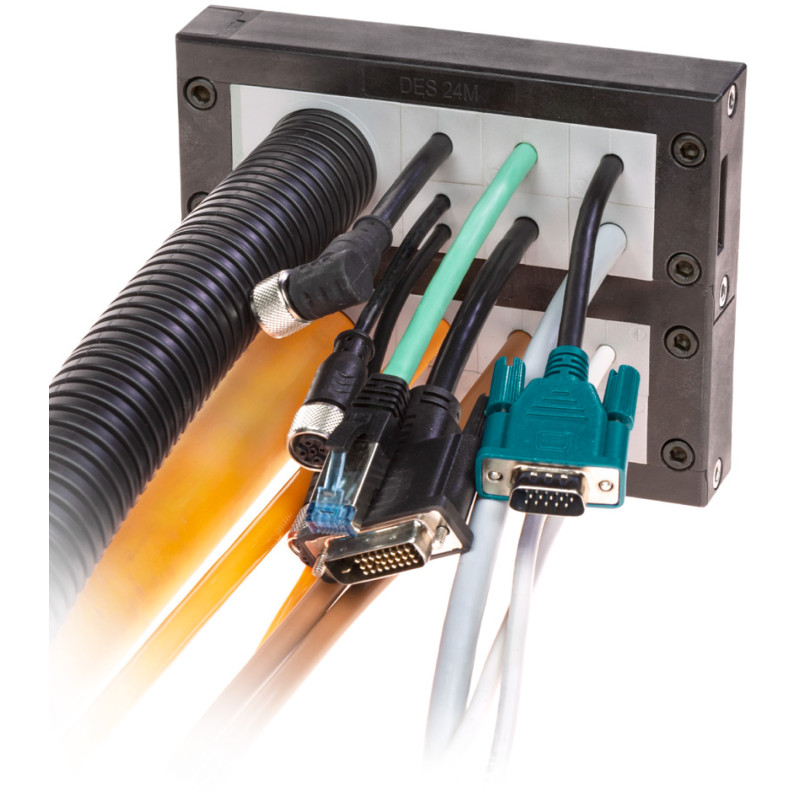

DES 24MX6 - Cable entry frames

  • 1731010256
  • Product Type Modular cable glands
  • Dimensions 146 x 323
  • Hole 114 x 300

The DES 24MX splittable frames family is a modular solution for installations where a big quantity of cables need to be routed through electrical cabinets walls or machines.

  • Modular solution
  • Multiple configurations with small and large grommets
  • Frame screws in AISI304 Stainless Steel
  • IP54 protection
  • Strain relief acc. to  EN 62444
  • Robust construction IK10
  • External gasket included
  • Material: PP+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Model Code Max. opening [mm] Dimensions [mm]
DES 24MX2 1731010252 114 x 92 146 x 115
DES 24MX3 1731010253 114 x 144 146 x 166
DES 24MX4 1731010254 114 x 196 146 x 218
DES 24MX5 1731010255 114 x 249 146 x 272
DES 24MX6 1731010256 114 x 300 146 x 323
DES 24 MX7 1731010257 114 x 352 146 x 375
DES 24 MX8 1731010258 114 x 456 146 x 427
DES 24 MX9 1731010259 114 x 456 146 x 479
DES 24 MX10 1731010260 114 x 508 146 x 530
