Manufacturer: DetasUltra

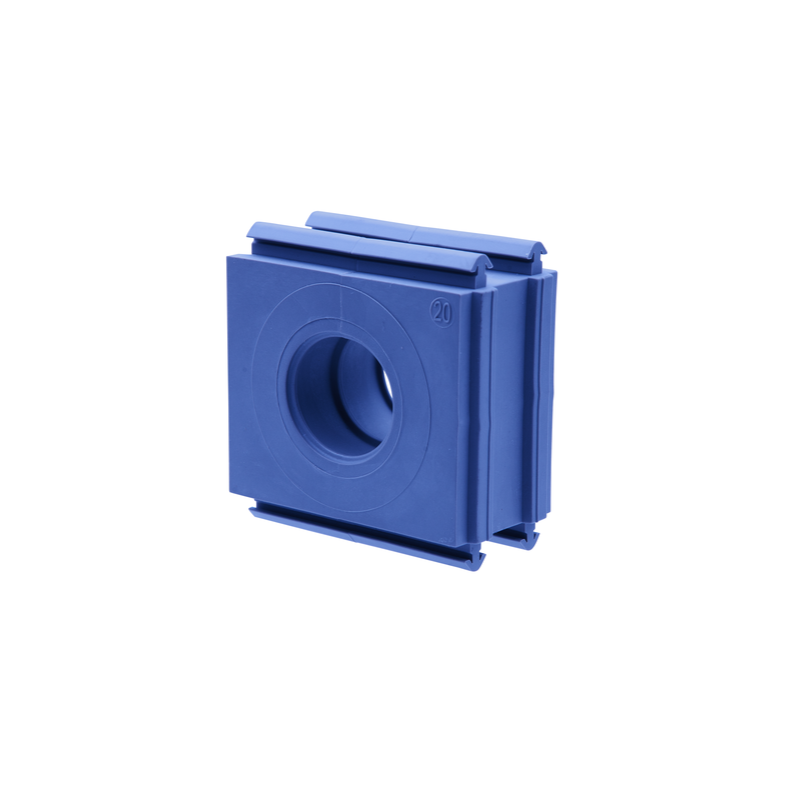

SPG 31 C - Divisible Hygienic Design frames

  • 1731260131
  • Product Type Hygienic cable glands
  • 31 ~ 32

The SPG C grommets allow cables with diameter from 18 to 35 mm to be routed inside the DES 24 CLEAN series divisible frame.

  • Cable grommets for cables with diameters from 18 to 35 mm
  • Long lasting product and high resistance to industrial oils.
  • FDA certified material
  • Blue color
  • Material: TPE certified according to FDA 21 CFR 177.2600, free of halogens and silicones
  • Flammability: self-extinguishing according to UL94-VB
  • Temperature: -40°C. +80°C (static)
Model Code Cable Ø max. [mm]
SPG 0 C 1731260117 -
SPG 18 C 1731260118 18 ~ 19
SPG 19 C 1731260119 19 ~ 20
SPG 20 C 1731260120 20 ~ 21
SPG 21 C 1731260121 21 ~ 22
SPG 22 C 1731260122 22 ~ 23
SPG 23 C 1731260123 23 ~ 24
SPG 24 C 1731260124 24 ~ 25
SPG 25 C 1731260125 25 ~ 26
SPG 26 C 1731260126 26 ~ 27
SPG 27 C 1731260127 27 ~ 28
SPG 28 C 1731260128 28 ~ 29
SPG 29 C 1731260129 29 ~ 30
SPG 30 C 1731260130 30 ~ 31
SPG 31 C 1731260131 31 ~ 32
SPG 32 C 1731260132 32 ~ 33
SPG 33 C 1731260133 33 ~ 34
SPG 34 C 1731260134 34 ~ 35
