Manufacturer: DetasUltra

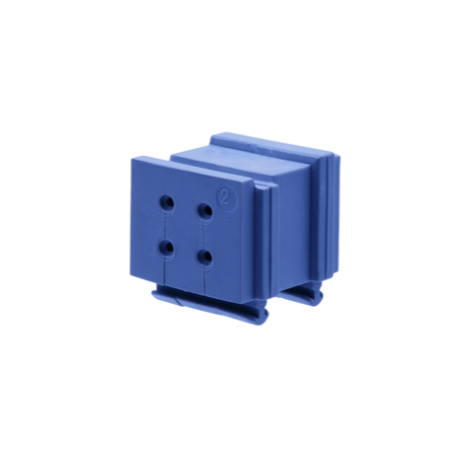

SPP 2x3C - Divisible Hygienic Design frames

  • 1731260143
  • Product Type Hygienic cable glands
  • Hole 2 x 3

The SPP C series grommets allow cables with diameter from 2 to 17 mm to be routed inside the DES 24 CLEAN series divisible frame.

  • Cable gland grommets for cables with diameters from 2 to 17 mm
  • Single, double or quadruple
  • Long lasting product and high resistance to industrial oils.
  • FDA certified material
  • Blue color
  • Material: TPE certified according to FDA 21 CFR 177.2600, free of halogens and silicones
  • Flammability: self-extinguishing according to UL94-VB
  • Temperature: -40°C. +80°C (static)
Model Code Cable Ø max. [mm]
SPP 0 C 1731260100 -
SPP 2 C 1731260102 2 ~ 3
SPP R1C 1731260103 3 ~ 6
SPP R2C 1731260106 6 ~ 9
SPP R3C 1731260109 9 ~ 12
SPP R4C 1731260112 12 ~ 15
SPP 16 C 1731260116 16 ~ 17
SPP 2x2C 1731260142 2 x 2
SPP 2x3C 1731260143 2 x 3
SPP 2x4C 1731260144 2 x 4
SPP 2x5C 1731260145 2 x 5
SPP 2x6C 1731260146 2 x 6
SPP 2x7C 1731260147 2 x 7
SPP 2x8C 1731260148 2 x 8
SPP 4x2C 1731260152 4 x 2
SPP 4x3C 1731260153 4 x 3
SPP 4x4C 1731260154 4 x 4
SPP 4x5C 1731260155 4 x 5
SPP 4x6C 1731260156 4 x 6
