Line distance transducer PT9000EXT
  • Line distance transducer PT9000EXT

Photos are for informational purposes only. View product specification

Manufacturer: Celesco

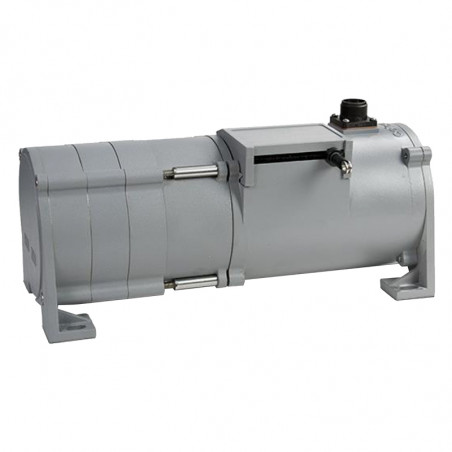

Line distance transducer PT9000EXT

Line distance transducer PT9000EXT

PT9000Ext - transducers group for industrial applications(up to 42180 mm) rysunek
- Measure range 43180 mm
- reliable casing
- for difficult production applications
- EX version available

Technical data

Group PT9101 PT9150 PT9232 PT9301 PT9420 PT9510 PT9CN PT9DN
Output Signal Options potentiometer encoder RS232 potentiometer and
tachometer
current voltage Canabus J1939 Device Net


Technical data

Measurement range [mm] 43180 43180 43180 43180 43180 43180 43180 43180
Accuracy 0,10% 0,02%...0,04% 0,10% 0,10% 0,12% 0,12% 0,010% 0,10%
Repeatability 0,02% 0,02% 0,02% 0,02% 0,05% 0,05% 0,02% 0,02%
Durability 250k...2,5 mln 5 mln 250k...2,5 mln 250k...2,5 mln 250k...2,5 mln 250k - 2,5Mln 250k...2,5 mln 250k...2,5 mln

Casing
Material Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Aluminium
Noble steel
Protection level IP67/68 IP65/67 IP67 IP67/68 IP67/68 IP67/68 IP67 IP67
Operation temperature -40...90°C -17...71°C -40...90°C -40...90°C -40...90°C -40...90°C -40...90°C -40...90°C
Vibrations Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max
Do 10g @
2000 Hz max


Measurement cord

Noble steel covered with nylon. [inch] * ø 0,034; 0,024;0,019
0,015
ø 0,034; 0,024;0,019
0,015
ø 0,034; 0,024;0,019
0,015
ø 0,034; 0,024;0,019
0,015
ø 0,034; 0,024;0,019
0,015
ø 0,034; 0,024;0,019
0,015
ø 0,034; 0,024;0,019
0,015
ø 0,034; 0,024;0,019
0,015
Noble steel [inch*] - - - - - - - -
Thermoelastic plastic - - - - - - - -


Electrical connection

Tips for soldering - - - - - - - -
Wires - - - - - - - -
Cables 7,5m;3m Cable
waterproof
7,5 m Cable 7,5 m Cable 7,5 m Cable 7,5m;3m Cable
waterproof
7,5m;3m Cable
waterproof
- -
Plug Metal plug/
plastic
6 pol.+socket
Metal plug/
plastic
6/18 pol.+
socket
Metal plug/
plastic
6 pol.+socket
Metal plug/
plastic
6 pol.+socket
Metal plug/
plastic
6 pol.+socket
Metal plug/
plastic
6 pol.+socket
micro plug 5pol.+
micro plug 5pol.+
+ socket
(also 5 m cable)
micro plug 5pol.+
micro plug 5pol.+
+ socket
(also 5 m cable)


Properties

  Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system, EX version Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system Integrated cable brush, cable breaking system
*) 1 inch= 25,4 mm
